Общий каталог PRECITOOL

P	M	K	S	N	Plastics	M	HSS-	DIN	DIN	Chamfer form C
N/mm2	N/mm2	HB	N/mm2	N/mm2	N/mm2		Co PM	371	376
						Metric
						thread			from M12	50° Twist L
								coated		2-3 threads
132260 < 1200	< 900	<300	<1000 Brass, bronze, alu < 600 Thermoplastics,
					CFRP, GFRP
						Metric	DIN			UNI
			vc = m/min.			60°		6HX	3 × D
							13
132260 10-17	8-10	15-22	2-3	32-60	15-26
								Blind hole

13	Design/Use:	Dimensions:
	- for blind hole thread	≤ M6 = solid point
	- chamfer form C, 2-3 thread	> M6 = internal centring
	- otherwise like 132210
	132260 HighQ, HSS-Co PM, RSP50, Hardlube

d		P	l	l	l		d a	l	Core x
1	132260		1	2	4		2	3
mm		mm	mm	mm	mm	mm	mm	mm	*ersal* mm
M2		0�40	45	8	—	2�8	2�1	5	*Univ* 1�60
M2,5		0�45	50	9	—	2�8	2�1	5	2�05
M3		0�50	56	5	18	3�5	2�7	6	2�50
M4		0�70	63	7	21	4�5	3�4	6	3�30
M5		0�80	70	8	25	6�0	4�9	8	4�20
M6		1�00	80	10	30	6�0	4�9	8	5�00
M8		1�25	90	13	35	8�0	6�2	9	6�80
M10		1�50	100	15	39	10�0	8�0	11	l 8�50
M12		1�75	110	18	—	9�0	7�0	10	4 10�20
M14		2�00	110	20	—	11�0	9�0	12	12�00
M16		2�00	110	20	—	12�0	9�0	12	14�00
M20		2�50	140	25	—	16�0	12�0	15	17�50
M24		3�00	160	30	—	18�0	14�5	17	21�00
M27		3�00	160	30	—	20�0	16�0	19	24�00
M30		3�50	180	35	—	22�0	18�0	21	26�50
	P	M	K	S			N	Plastics	Chamfer form E DIN DIN HSS- M
Cat. no.
	N/mm2	N/mm2	HB	N/mm2			N/mm2	N/mm2	376 371 Co PM
									Metric
									L 50° Twist from M12 coated thread
132262	< 1200	< 900	<300	<1000 Brass, bronze, alu < 600 Thermoplastics,					1,5-2 threads
								CFRP, GFRP
									UNI DIN Metric
				vc = m/min.					3 × D 6HX 60°
									13
132262	10-17	8-10	15-22	2-3			32-60	15-26

Blind hole Design/Use: Dimensions: - for blind hole thread ≤ M6 = point with plane milled surface - chamfer form E 1.5-2 thread > M6 = internal centring

- otherwise like 132210

132262 HighQ, HSS-Co PM, RSP50, Hardlube

d		P	l	l	l		d	a		l	*ersal* Core x
1	132262		1	2	4		2			3
mm		mm	mm	mm	mm	mm		mm	mm		*Univ* mm
M3		0�50	56	5	18	3�5		2�7		6	2�50
M4		0�70	63	7	21	4�5		3�4		6	3�30
M5		0�80	70	8	25	6�0		4�9		8	4�20
M6		1�00	80	10	30	6�0		4�9		8	5�00
M8		1�25	90	13	35	8�0		6�2		9	6�80
M10		1�50	100	15	39	10�0		8�0	11		8�50
M12		1�75	110	18	—	9�0		7�0	10		l 10�20
											4
M16		2�00	110	20	—	12�0		9�0	12		14�00
M20		2�50	140	25	—	16�0		12�0	15		17�50
	P	M	K	S			N				Chamfer form C DIN DIN HSS- M Plastics
Cat. no.
	N/mm2	N/mm2	HB	N/mm2			N/mm2				376 371 Co PM N/mm2
											Metric
132263	< 1200	< 900	<300	<1000 Brass, bronze, alu < 600 Thermoplastics GRP/CRP							L 50° Twist from M12 thread
											2-3 threads coated
				vc = m/min.							UNI DIN Metric
											3 × D 6GX 60°
132263	10-17	8-10	15-22	2-3			32-60			15-26	13 15-26

Blind hole Design: Use: - for blind hole thread For universal use. - chamfer form C, 2-3 thread

- tolerance class 6GX - otherwise like 132260

132263 HighQ, HSS-Co PM, RSP50, Hardlube 6GX ersal

Univ

d		P	l	l	l	d	a	l	Core x
1	132263		1	2	4	2		3
mm		mm	mm	mm	mm	mm	mm	mm	mm
M3		0�50	56	5	18	3�5	2�7	6	2�50
M4		0�70	63	7	21	4�5	3�4	6	3�30
M5		0�80	70	8	25	6�0	4�9	8	4�20
M6		1�00	80	10	30	6�0	4�9	8	5�00
M8		1�25	90	13	35	8�0	6�2	9	6�80	l
M10		1�50	100	15	39	10�0	8�0	11	8�50	4

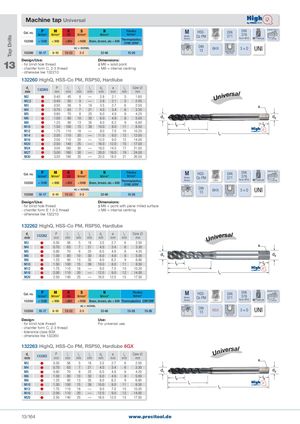

Общий каталог PRECITOOL - страница 169
