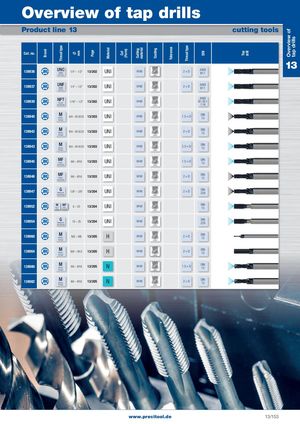

Overview of tap drills
Product line 13 cutting tools


Overview of
tap drills
Thread type


Thread type
Tolerance
material
Material


Coating
Cutting
(Form)
Brand


Page


drill
mm


DIN


Tap
Cut
Cat. no.


X
138936 UNC 1/4“ – 1/2“ 13/202 UNI VHM 2×D ANSI
13
american
UNIFIED
coarse thread coated
B1.1

138937 UNF 1/4“ – 1/2“ 13/202 UNI VHM 2×D ANSI
American
UNIFIED
fine thread coated
B1.1

ANSI
138939 NPT 1/16“ – 1/2“ 13/202 UNI VHM B1.20.1
Conical
pipe thread coated 1:16

138940 M M4 – M18/20 13/203 UNI VHM 1.5 × D DIN
Metric
thread coated
13

138942 M M4 – M18/20 13/203 UNI VHM 2×D DIN
Metric
thread coated
13

138943 M M4 – M18/20 13/203 UNI VHM 2.5 × D DIN
Metric
thread coated
13

138945 MF M4 – M16 13/203 UNI VHM 1.5 × D DIN
Metric
fine thread coated
13

138946 MF M4 – M16 13/203 UNI VHM 2×D DIN
Metric
fine thread coated
13

138947 G 1/8“ – 3/8“ 13/204 UNI VHM 2×D DIN
Whitworth
pipe thread coated
228

M MF DIN
138952 Metric
thread
Metric
fine thread
8 – 20 13/204 UNI VHM
coated
13

138954 G 10 – 25 13/204 UNI VHM DIN
Whitworth
pipe thread coated
228

138960 M M2 – M8 13/205 H VHM 2×D DIN
Metric
thread coated
13

138964 M M4 – M12 13/205 H VHM 2×D DIN
Metric
thread coated
13

138980 M M4 – M16 13/205 N VHM 1.5 × D DIN
Metric
thread coated
13

138982 M M4 – M16 13/205 N VHM 2×D DIN
Metric
thread coated
13


www.precitool.de 13/153
