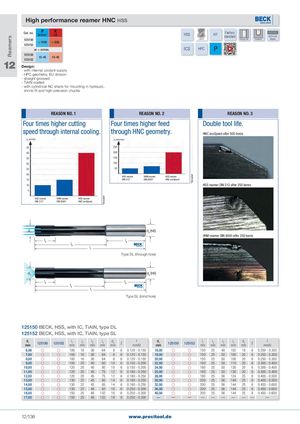

Общий каталог PRECITOOL - страница 141

Reamers *Uncoatet *Uncoatet High performance reamer HNC HSS Cat. no. PN/mm2 KHB HSS H7 Factorystandard 6535 HA 125150 coated Through hole Grundloch shank < 1500 < 800 125152 vc = m/min. ICS HPC P 125150 15-45 15-40 125152 12 Design: - with internal coolant supply - HPC geometry, EU division - straight grooved - TiAlN coated - with cylindrical NC shank for mounting in hydraulic, shrink-fit and high-precision chucks REASON NO. 1 REASON NO. 2 REASON NO. 3 Four times higher cutting Four times higher feed Double tool life. speed through internal cooling. through HNC geometry. HNC ecoSpeed after 500 bores HSS reamer VHM reamer HSS reamer DIN 212* DIN 8093* HNC ecoSpeed HSS reamer DIN 212 after 250 bores HSS reamer VHM reamer HSS reamer DIN 212* DIN 8093* HNC ecoSpeed VHM reamer DIN 8093 after 250 bores Type DL (through hole) Type SL (blind hole) 125150 BECK, HSS, with IC, TiAlN, type DL 125152 BECK, HSS, with IC, TiAlN, type SL d1mm 125150 125152 l1mm l2mm l3mm l4mm d2mm Z fmm/U d1mm 125150 125152 l1mm l2mm l3mm l4mm d2mm Z fmm/U 6,00   100 16 36 64 8 6 0.120 - 0.150 18,00   150 25 48 102 18 8 0.250 - 0.300 7,00   100 16 36 64 8 6 0.120 - 0.150 19,00   150 25 50 100 20 8 0.250 - 0.300 8,00   100 16 36 64 8 6 0.120 - 0.150 20,00   150 25 50 100 20 8 0.250 - 0.300 9,00   100 20 40 60 10 6 0.150 - 0.200 22,00   160 25 50 110 20 8 0.300 - 0.400 10,00   120 20 40 80 10 6 0.150 - 0.200 24,00   180 25 50 130 20 8 0.300 - 0.400 11,00   120 20 45 75 12 6 0.180 - 0.250 25,00   180 25 50 130 20 8 0.300 - 0.400 12,00   120 20 45 75 12 6 0.180 - 0.250 28,00   180 25 56 124 25 8 0.400 - 0.500 13,00   130 22 45 85 14 6 0.180 - 0.250 30,00   200 25 56 144 25 8 0.400 - 0.500 14,00   130 22 45 85 14 6 0.180 - 0.250 32,00   200 25 56 144 25 8 0.450 - 0.600 15,00   130 22 48 82 16 6 0.250 - 0.300 36,00   200 25 56 144 25 8 0.450 - 0.600 16,00   150 25 48 102 16 6 0.250 - 0.300 40,00   200 25 56 144 25 8 0.450 - 0.600 17,00   150 25 48 102 18 8 0.250 - 0.300 — — — — — — — — — — 12/136 www.precitool.de
