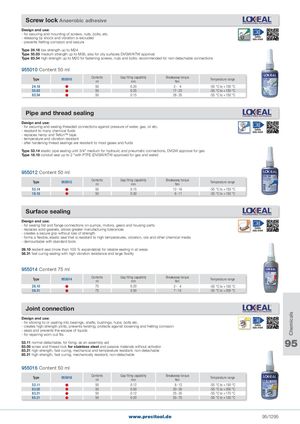

Screw lock Anaerobic adhesive Design and use: - for securing and mounting of screws, nuts, bolts, etc. - releasing by shock and vibration is excluded - prevents fretting corrosion and seizure Type 24.18 low strength up to M24 Type 55.03 medium strength up to M36, also for oily surfaces DVGW/KTW approval Type 83.54 high strength up to M20 for fastening screws, nuts and bolts; recommended for non-detachable connections 955010 Content 50 ml Type 955010 Contents Gap filling capabilitymlmm Breakaway torqueNm Temperature range 24.18  50 0.20 2 -   4 -55 °C to +150 °C 55.03  50 0.25 17 - 22 -55 °C to +150 °C 83.54  50 0.15 28 - 35 -55 °C to +150 °C Pipe and thread sealing Design and use: - for securing and sealing threaded connections against pressure of water, gas, oil etc. - resistant to many chemical fluids - replaces hemp and Teflon™ tape - temperature and vibration resistant - after hardening thread sealings are resistant to most gases and fluids Type 53.14 elastic pipe sealing until 3/4" medium for hydraulic and pneumatic connections, DVGW approval for gas Type 18.10 conduit seal up to 2 "with PTFE (DVGW/KTW approved for gas and water) 955012 Content 50 ml Type 955012 Contents Gap filling capabilitymlmm Breakaway torqueNm Temperature range 53.14  50 0.15 12 - 16 -55 °C to +150 °C 18.10  50 0.30   6 - 11 -55 °C to +150 °C Surface sealing Design and use: - for sealing flat and flange connections on pumps, motors, gears and housing parts - replaces solid gaskets, allows greater manufacturing tolerances - creates a secure grip without loss of strength - forms a flexible, elastic seal that is resistant to high temperatures, vibration, oils and other chemical media - demountable with standard tools 28.10 resilient seal (more than 100 % expandable) for reliable sealing in all areas 58.31 fast curing sealing with high vibration resistance and large fissility 955014 Content 75 ml Type 955014 Contents Gap filling capabilitymlmm Breakaway torqueNm Temperature range 28.10  75 0.20 2 -   4 -55 °C to +150 °C 58.31  75 0.50 7 - 10 -55 °C to +200 °C Joint connection Design and use: - for sticking to or pasting into bearings, shafts, bushings, hubs, bolts etc. - creates high-strength joints, prevents twisting, protects against loosening and fretting corrosion - seals and prevents the escape of liquids - for repairing worn out fits 53.11 normal detachable, for fixing, as an assembly aid83.05 screw and thread lock for stainless steel and passive materials without activator 95 83.21 high strength, fast curing, mechanical and temperature resistant, non-detachable 85.21 high strength, fast curing, mechanically resistant, non-detachable 955016 Content 50 ml Type 955016 Contents Gap filling capabilitymlmm Breakaway torqueNm Temperature range 53.11  50 0.12   8 - 12 -55 °C to +150 °C 83.05  50 0.50 20 - 30 -55 °C to +200 °C 83.21  50 0.12 25 - 35 -55 °C to +175 °C 85.21  50 0.20 55 - 70 -55 °C to +150 °C www.precitool.de 95/1295 Chemicals
