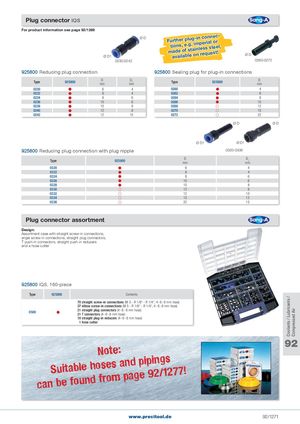

Plug connector IQS For product information see page 92/1269 Ø D1 ØD Fmutaiarotvdhnaeesil,roaepfb.lslguet.gaoi-imnninlperceesoqrsinuasneltesoetcer!-l, ØD 0230-0242 0260-0272 925800 Reducing plug connection 925800 Sealing plug for plug-in connections Type 925800 Dmm D1mm Type 925800 Dmm 0230  6 4 0260  4 0232  8 4 0262  6 0234  8 6 0264  8 0236  10 6 0266  10 0238  10 8 0268  12 0240  12 8 0270  15 0242  12 10 0272  22 ØD ØD Ø D1 Ø D1 925800 Reducing plug connection with plug nipple 0320-0336 Type 925800 Dmm D1mm 0320  6 4 0322  8 4 0324  8 6 0326  10 6 0328  10 8 0330  12 8 0332  12 10 0334  15 12 0336  22 15 Plug connector assortment Design: Assortment case with straight screw-in connections, angle screw-in connections, straight plug connectors, T push-in connectors, straight push-in reducers and a hose cutter 925800 IQS, 160-piece Type 925800 Contents 70 straight screw-in connections (M 5 - R 1/8“ - R 1/4“, 4 - 6 - 8 mm hose) 37 elbow screw-in connections (M 5 - R 1/8“ - R 1/4“, 4 - 6 - 8 mm hose) 0500  21 straight plug connectors (4 - 6 - 8 mm hose)21 T connectors (4 - 6 - 8 mm hose) 10 straight plug-in reducers (4 - 6 - 8 mm hose)   1 hose cutter canSbueitafboluenhdoNfsroeotsme:apnadgpeip9i2n/g1s277! 92 www.precitool.de 92/1271 Coolants / Lubricants / Compressed Air
