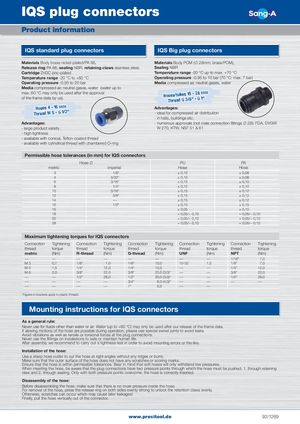

IQS plug connectors Product information IQS standard plug connectors IQS Big plug connectors Materials Body brass nickel-plated/PA 66, Materials Body POM (x 28mm: brass/POM), Release ring PA 66, sealing NBR, retaining claws stainless steel, Sealing NBR Cartridge ZnDC zinc-plated Temperature range -20 °C up to max. +70 °C Temperature range -20 °C to +80 °C Operating pressure -0.95 to 10 bar (70 °C: max. 7 bar) Operating pressure -0.95 to 20 bar Media compressed air, neutral gases, water Media compressed air, neutral gases, water (water up to max. 60 °C may only be used after the approvalof the frame data by us). Hoses/tubes 15 - Thread G 3/8“ 28 - G mm 1“ Hoses Thread 4M - 16 mm 5 - G 1/2“ Advantages:- ideal for compressed air distribution - in halls, buildings etc. Advantages: - numerous approvals (not male connection fittings x 28): FDA, DVGW - large product variety W 270, KTW, NSF 51 & 61 - high tightness - available with conical, Teflon-coated thread - available with cylindrical thread with chambered O-ring Permissible hose tolerances (in mm) for IQS connectors Hose x PU PA metric imperial Hose Hose  3 1/8“ ± 0,10 ± 0,08  4 5/32“ ± 0,10 ± 0,08  6 3/16“ ± 0,12 ± 0,10  8 1/4“ ± 0,12 ± 0,10 10 5/16“ ± 0,15 ± 0,12 12 3/8“ ± 0,15 ± 0,12 14 --- ± 0,15 ± 0,12 16 1/2“ ± 0,15 ± 0,15 15 ± 0,05 ± 0,10 18 + 0,05/− 0,10 + 0,05/− 0,10 22 + 0,05/− 0,10 + 0,05/− 0,10 28 + 0,05/− 0,10 + 0,05/− 0,10 Maximum tightening torques for IQS connectors Connection Tightening Connection Tightening Connection Tightening Connection Tightening Connection Tightening thread torque thread torque thread torque thread torque thread torque metric (Nm) R-thread (Nm) G-thread (Nm) UNF (Nm) NPT (Nm) --- --- --- --- --- --- --- --- 1/16“  7,0 M3 0,7 1/8“  7,0 1/8“ 10,0 10-32 1,5 1/8“  7,0 M5 1,5 1/4“ 12,0 1/4“ 15,0 --- --- 1/4“ 12,0 M6 2,0 3/8“ 22,0 3/8“ 25,0 (3,0)* --- --- 3/8“ 22,0 --- --- 1/2“ 28,0 1/2“ 30,0 (3,0)* --- --- 1/2“ 28,0 --- --- --- --- 3/4“   6,0 (4,0)* --- --- --- --- --- --- --- --- 1“  5,0 --- --- *Figures in brackets apply to plastic threads Mounting instructions for IQS connectors As a general rule: Never use for fluids other than water or air. Water (up to +60 °C) may only be used after our release of the frame data. If slewing motions of the hose are possible during operation, please use special swivel joints to avoid leaks. Avoid vibrations as well as tensile or torsional forces at the plug connections. Never use the fittings on installations to safe or maintain human life. After assembly we recommend to carry out a tightness test in order to avoid mounting errors or the like. Installation of the hose: Use a sharp hose cutter to cut the hose at right angles without any ridges or burrs. Make sure that the outer surface of the hose does not have any scratches or scoring marks. Ensure that the hose is within permissible tolerances. Bear in mind that soft hoses will only withstand low pressures. When inserting the hose, be aware that the plug connections have two pressure points through which the hose must be pushed: 1. through retaining claw and 2. through sealing. Only with both pressure points overcome, the hose is correctly inserted. Disassembly of the hose: Before disassembling the hose, make sure that there is no more pressure inside the hose. For removal of the hose, press the release ring on both sides evenly strong to unlock the retention claws evenly. Otherwise, scratches can occur which may cause later leakages! Finally, pull the hose vertically out of the connector. www.precitool.de 92/1269
