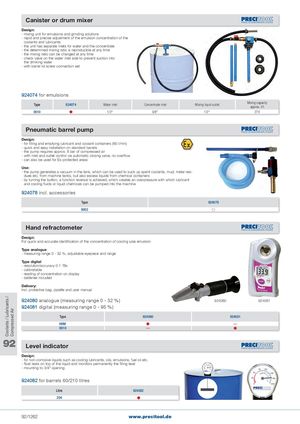

Общий каталог PRECITOOL - страница 1267

Canister or drum mixer Design: - mixing unit for emulsions and grinding solutions - rapid and precise adjustment of the emulsion concentration of the coolants and lubricants - the unit has separate inlets for water and the concentrate - the determined mixing ratio is reproducible at any time - the mixing ratio can be changed at any time - check valve on the water inlet side to prevent suction into the drinking water - with barrel lid screw connection set 924074 for emulsions Type 924074 Water inlet Concentrate inlet Mixing liquid outlet Mixing capacityapprox. l/h 0010  1/2“ 3/8" 1/2“ 270 Pneumatic barrel pump Design: - for filling and emptying lubricant and coolant containers (60 l/min) - quick and easy installation on standard barrels - the pump requires approx. 8 bar of compressed air - with inlet and outlet control via automatic closing valve, no overflow - can also be used for Ex-protected areas Use: - the pump generates a vacuum in the tank, which can be used to suck up spent coolants, mud, metal resi- dues etc. from machine tanks, but also excess liquids from chemical containers - by turning the button, a function reversal is achieved, which creates an overpressure with which lubricant and cooling fluids or liquid chemicals can be pumped into the machine 924078 incl. accessories Type 924078 0002  Hand refractometer Design: For quick and accurate identification of the concentration of cooling lube emulsion Type analogue - measuring range 0 - 32 %, adjustable eyepiece and range Type digital - resolution/accuracy 0.1 °Bx - calibratable - reading of concentration on display - batteries included Delivery: Incl. protective bag, pipette and user manual 924080 analogue (measuring range 0 - 32 %) 924080 924081 924081 digital (measuring range 0 - 95 %) Type 924080 924081 HRM  — 0010 —  92 Level indicator Design: - for non-corrosive liquids such as cooling lubricants, oils, emulsions, fuel oil etc. - float rests on top of the liquid and monitors permanently the filling level - mounting to 3/4" opening 924082 for barrels 60/210 litres Litre 924082 204  92/1262 www.precitool.de Coolants / Lubricants / Compressed Air
