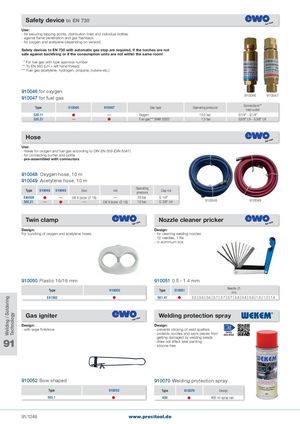

Общий каталог PRECITOOL - страница 1253

Safety device to EN 730 Use: - for securing tapping points, distribution lines and individual bottles - against flame penetration and gas flashback - for oxygen and acetylene (depending on version) Safety devices to EN 730 with automatic gas stop are required, if the torches are not safe against backfiring or if the consumption units are not within the same room!   * For fuel gas with type approval number  ** To EN 560 (LH = left hand thread) *** Fuel gas (acetylene, hydrogen, propane, butane etc.) 910046 for oxygen 910047 for fuel gas 910046 910047 Type 910046 910047 Gas type Operating pressure Connections**Inlet-outlet 520.11  — Oxygen 15.0 bar G1/4" - G1/4" 520.21 —  Fuel gas*** BAM 0395* 1.5 bar G3/8" LH - G3/8" LH Hose Use: - hoses for oxygen and fuel gas according to DIN EN 559 (DIN 8541) - for connecting burner and bottle - pre-assembled with connectors 910048 Oxygen hose, 10 m 910049 Acetylene hose, 10 m Type 910048 910049 blue red Operatingpressure Cap nut E40028  — LW 6 (outer  16) — 20 bar G 1/4" 502.21 —  — LW 9 (outer  16) 10 bar G 3/8" LH 910048 910049 Twin clamp Nozzle cleaner pricker Design: Design: For bundling of oxygen and acetylene hoses - for cleaning welding nozzles - 12 needles, 1 file - in aluminium box 910050 Plastic 16/16 mm 910051 0.5 - 1.4 mm Type 910050 Type 910051 Needle xmm E41002  501.41  0.5 | 0.6 | 0.6 | 0.7 | 0.7 | 0.7 | 0.8 | 0.8 | 0.9 | 1.0 | 1.2 | 1.4 Gas igniter Welding protection spray Design: Design: - with large flintstone - prevents sticking of weld spatters - protects nozzles and work pieces from getting damaged by welding beads 91 - does not affect later painting- silicone-free 910052 Bow shaped 910070 Welding protection spray Type 910052 Type 910070 Design 503.1  400  400 ml spray can 91/1248 www.precitool.de Welding / Soldering Technology
