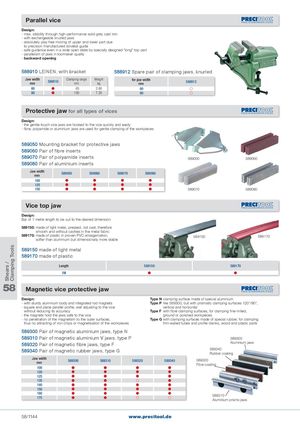

Parallel vice Design: - max. stability through high-performance solid grey cast iron - with exchangeable knurled jaws - absolutely play-free moving of upper and lower part due to precision manufactured dovetail guide - safe guidance even in a wide open state by specially designed "long" top part - parallelism of jaws in toolmaker quality - backward opening 588910 LEINEN, with bracket 588912 Spare pair of clamping jaws, knurled Jaw widthmm 588910 Clamping rangemm Weightkg for jaw widthmm 588912 60  65 2.80 60  80  100 7.30 80  Protective jaw for all types of vices Design: - the gentle-touch vice jaws are hooked to the vice quickly and easily - fibre, polyamide or aluminium jaws are used for gentle clamping of the workpieces 589050 Mounting bracket for protective jaws 589060 Pair of fibre inserts 589070 Pair of polyamide inserts 589050 589060 589080 Pair of aluminium inserts Jaw widthmm 589050 589060 589070 589080 100     125     150     589070 589080 Vice top jaw Design: Bar of 1 metre length to be cut to the desired dimension 589150: made of light metal, pressed, not cast, therefore smooth and without cavities in the metal fabric 589170: made of plastic in proven PVC amalgamation, 589150 589170 softer than aluminium but dimensionally more stable 589150 made of light metal 589170 made of plastic Length 589150 589170 1M   58 Magnetic vice protective jaw Design: Type N clamping surface made of special aluminium - with sturdy aluminium body and integrated rod magnets Type P like 589300, but with prismatic clamping surfaces 120°/90°, - square and plane parallel profile, well adjusting to the vice vertical and horizontal without reducing its accuracy Type F with fibre clamping surfaces, for clamping fine-milled, - the magnets hold the jaws safe to the vice ground or polished workpieces - no penetration of the magnetism to the outer surfaces, Type G with clamping surfaces made of special rubber, for clamping thus no attracting of iron chips or magnetisation of the workpieces thin-walled tubes and profile blanks, wood and plastic parts 589300 Pair of magnetic aluminium jaws, type N 589310 Pair of magnetic aluminium V jaws, type P 589300 589320 Pair of magnetic fibre jaws, type F Aluminium jaws 589340 Pair of magnetic rubber jaws, type G 589340Rubber coating Jaw widthmm 589300 589310 589320 589340 589320Fibre coating 100     120     125     135     140     150     160    175 589310Aluminium prisms jaws 58/1144 www.precitool.de Shears / Clamping Tools
