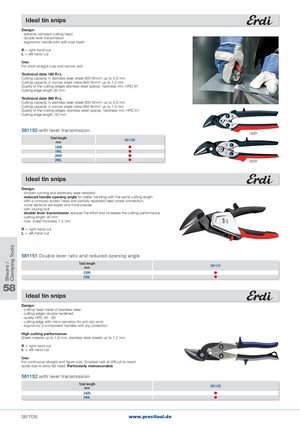

Общий каталог PRECITOOL - страница 1131

Ideal tin snips Design: - extreme compact cutting head - double lever transmission - ergonomic handle with soft core insert R = right-hand cut L = left-hand cut Use: For short straight cuts and narrow radii Technical data 180 R+L Cutting capacity in stainless steel sheet 800 N/mm² up to 0.8 mm Cutting capacity in normal sheet metal 600 N/mm² up to 1.2 mm Quality of the cutting edges stainless steel special, hardness min. HRC 61 Cutting edge length 20 mm Technical data 260 R+L Cutting capacity in stainless steel sheet 800 N/mm² up to 0.8 mm Cutting capacity in normal sheet metal 600 N/mm² up to 1.2 mm Quality of the cutting edges: stainless steel special, hardness min. HRC 61 Cutting edge length: 33 mm 581150 with lever transmission 180R Total lengthmm 581150 180R  180L  260R  260L  260R Ideal tin snips Design: - smooth-running and extremely wear-resistant - reduced handle opening angle for better handling with the same cutting length - with a compact scissor head and partially recessed head screw connection, curve sections are easier and more precise - with locking bolt - double lever transmission reduces the effort and increases the cutting performance - cutting length 30 mm - max. sheet thickness 1.2 mm R = right-hand cut L = left-hand cut 581151 Double lever ratio and reduced opening angle Total lengthmm 581151 230R  230L  58 Ideal tin snips Design: - cutting head made of stainless steel - cutting edges double hardened - quality HRC 58 - 60 - cutting edge with micro-serration for anti-slip work - ergonomic 2-component handles with slip protection High cutting performance: Sheet material up to 1.8 mm, stainless steel sheets up to 1.2 mm R = right-hand cut L = left-hand cut Use: For continuous straight and figure cuts. Smallest radii at difficult-to-reach spots due to extra flat head. Particularly manoeuvrable 581152 with lever transmission Total lengthmm 581152 240R  240L  58/1126 www.precitool.de Shears / Clamping Tools
