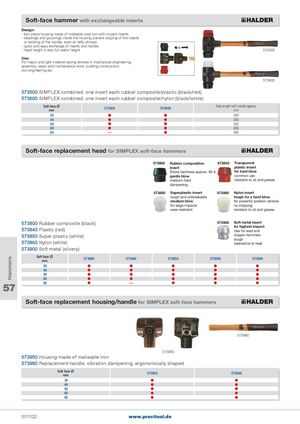

Общий каталог PRECITOOL - страница 1127

Soft-face hammer with exchangeable inserts Design: - two-piece housing made of malleable cast iron with impact inserts - beadings and groovings inside the housing prevent slipping of the inserts or twisting of the handle, even at hefty strokes - quick and easy exchange of inserts and handle - head height is also full useful height 573500 Use: For heavy and light material-saving strokes in mechanical engineering, assembly, repair and maintenance work, building construction, civil engineering etc. 573600 573500 SIMPLEX combined, one insert each rubber composite/plastic (black/red) 573600 SIMPLEX combined, one insert each rubber composite/nylon (black/white) Soft face Xmm 573500 573600 Total length with handle approx.mm 30   300 40   330 50   350 60   405 80 —  490 Soft-face replacement head for SIMPLEX soft-face hammers 573800 Rubber composition 573840 Transparent insert plastic insert Shore hardness approx. 95 A for hard blow gentle blow common use medium-hard resistant to oil and grease dampening 573850 Superplastic insert 573860 Nylon insert tough and unbreakable tough for a hard blow medium blow for powerful position strokes for edge impacts no chipping wear-resistant resistant to oil and grease 573800 Rubber composite (black) 573900 Soft metal insert for highest impact 573840 Plastic (red) Use for lead and 573850 Super plastic (white) copper hammers tough 573860 Nylon (white) insensitive to heat 573900 Soft metal (silvery) Soft face Xmm 573800 573840 573850 573860 573900 30      40      50      60      57 80  —    Soft-face replacement housing/handle for SIMPLEX soft-face hammers 573980 573950 573950 Housing made of malleable iron 573980 Replacement handle, vibration dampening, ergonomically shaped Soft face Xmm 573950 573980 30   40   50   60   80   57/1122 www.precitool.de Hammers
