Общий каталог PRECITOOL - страница 1120

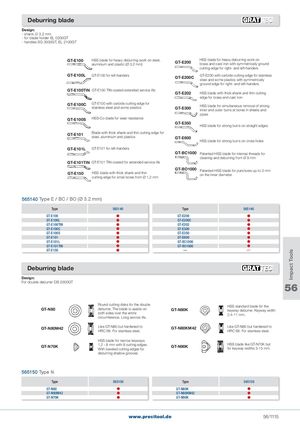

Deburring blade Design: - shank  3.2 mm - for blade holder EL 0200GT - handles SG 3000GT, EL 2100GT GT-E100 HSS blade for heavy deburring work on steel,aluminium and plastic (Ø 3.2 mm)GT-E200HSS blade for heavy deburring work onbrass and cast iron with symmetrically ground cutting edge for right- and left-handers GT-E100L GT-E100 for left-handers GT-E200C GT-E200 with carbide cutting edge for stainlesssteel and some plastics with symmetrically ground edge for right- and left-handers GT-E100TIN GT-E100 TIN-coated extended service life GT-E202 HSS blade with thick shank and thin cutting edge for brass and cast iron GT-E100C GT-E100 with carbide cutting edge forstainless steel and some plasticsGT-E300HSS blade for simultaneous removal of stronginner and outer burrs at bores in sheets and pipes GT-E100S HSS-Co blade for wear resistance GT-E350 HSS blade for strong burrs on straight edges GT-E101 Blade with thick shank and thin cutting edge forsteel, aluminium and plasticsGT-E600 HSS blade for strong burrs on cross holes GT-E101L GT-E101 for left-handers GT-BC1000 Patented HSS blade for internal threads for cleaning and deburring from Ø 9 mm GT-E101TIN GT-E101 TIN-coated for extended service life GT-E150 HSS blade with thick shank and thincutting edge for small bores from Ø 1,2 mmGT-BO1000Patented HSS blade for punctures up to 3 mmon the inner diameter. 565140 Type E / BC / BO (Ø 3.2 mm) Type 565140 Type 565140 GT-E100  GT-E200  GT-E100L  GT-E200C  GT-E100TIN  GT-E202  GT-E100C  GT-E300  GT-E100S  GT-E350  GT-E101  GT-E600  GT-E101L  GT-BC1000  GT-E101TIN  GT-BO1000  GT-E150  — — Deburring blade Design: For double deburrer DB 2000GT 56 Round cutting disks for the double HSS standard blade for the GT-N80 deburrer. The blade is usable on GT-N80K keyway deburrer. Keyway width both sides over the entire 2.4-11 mm. circumference. Long service life. GT-N80M42 Like GT-N80 but hardened to GT-N80KM42 Like GT-N80 but hardened to HRC 68. For stainless steel. HRC 68. For stainless steel. HSS blade for narrow keyways GT-N70K 1,2 - 8 mm with 8 cutting edges. GT-N90KWith beveled cutting edges forHSS blade like GT-N70K butfor keyway widths 3-15 mm. deburring shallow grooves 565150 Type N Type 565150 Type 565150 GT-N80  GT-N80K  GT-N80M42  GT-N80KM42  GT-N70K  GT-N90K  www.precitool.de 56/1115 Impact Tools
