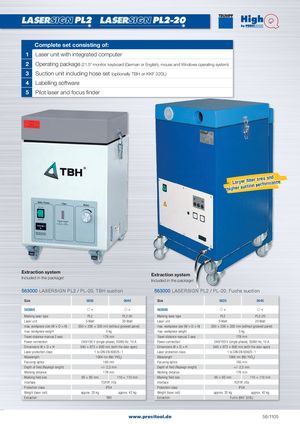

Общий каталог PRECITOOL - страница 1110

Complete set consisting of: 1 Laser unit with integrated computer 2 Operating package (21.5“ monitor, keyboard (German or English), mouse and Windows operating system) 3 Suction unit including hose set (optionally TBH or KKF 320L) 4 Labelling software 5 Pilot laser and focus finder higLhaerrgseur cftiilotenr paerrefaoramndance Extraction system Extraction system Included in the package! Included in the package! 563000 LASERSIGN PL2 / PL-20, TBH suction 563000 LASERSIGN PL2 / PL-20, Fuchs suction Size 0030 0040 Size 0035 0045 563000 + + 563000 + + Marking laser type PL2 PL2-20 Marking laser type PL2 PL2-20 Laser unit 5 Watt 20 Watt Laser unit 5 Watt 20 Watt max. workpiece size (W × D × H) 350 × 236 × 335 mm (without grooved panel) max. workpiece size (W × D × H) 350 × 236 × 335 mm (without grooved panel) max. workpiece weight 5 kg max. workpiece weight 5 kg Travel distance manual Z-axis 178 mm Travel distance manual Z-axis 178 mm Power connection 240/100 V (single-phase), 50/60 Hz, 10 A Power connection 240/100 V (single-phase), 50/60 Hz, 10 A Dimensions W × D × H 540 × 673 × 600 mm (with the door open) Dimensions W × D × H 540 × 673 × 600 mm (with the door open) Laser protection class 1 to DIN EN 60825 - 1 Laser protection class 1 to DIN EN 60825 - 1 Wavelength 1064 nm (Nd: YVO4) Wavelength 1064 nm (Nd: YVO4) Focusing optics 160 mm Focusing optics 160 mm Depth of field (Rayleigh length) +/- 2,3 mm Depth of field (Rayleigh length) +/- 2,3 mm Working distance 176 mm Working distance 176 mm Marking field size 95 × 95 mm 110 × 110 mm Marking field size 95 × 95 mm 110 × 110 mm Interface TCP/IP, I/Os Interface TCP/IP, I/Os Protection class IP54 Protection class IP54 Weight (laser cell) approx. 35 kg approx. 42 kg Weight (laser cell) approx. 35 kg approx. 42 kg Extraction TBH Extraction Fuchs (KKF 320L) www.precitool.de 56/1105
