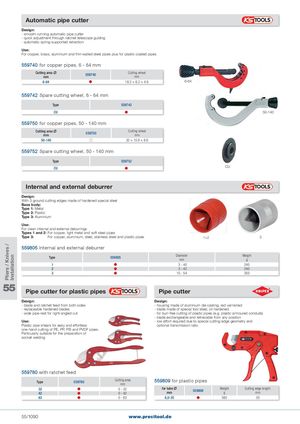

Automatic pipe cutter Design: - smooth-running automatic pipe cutter - quick adjustment through ratchet telescope guiding - automatic spring-supported retraction Use: For copper, brass, aluminium and thin-walled steel pipes plus for plastic coated pipes 559740 for copper pipes, 6 - 64 mm Cutting area Xmm 559740 Cutting wheelmm 6-64  18.2 × 6.2 × 4.8 6-64 559742 Spare cutting wheel, 6 - 64 mm Type 559742 CU  50-140 559750 for copper pipes, 50 - 140 mm Cutting area Xmm 559750 Cutting wheelmm 50-140  32 × 10.9 × 8.6 559752 Spare cutting wheel, 50 - 140 mm Type 559752 CU  CU Internal and external deburrer Design: With 3 ground cutting edges made of hardened special steel Base body: Type 1: Metal Type 2: Plastic Type 3: Aluminium Use: For clean internal and external deburrings Types 1 and 2: For copper, light metal and soft steel pipes Type 3: For copper, aluminium, steel, stainless steel and plastic pipes 1+2 3 559805 Internal and external deburrer Type 559805 Diametermm Weightg 1  3 - 40  240 2  3 - 42  240 3  10 - 54  350 55 Pipe cutter for plastic pipes Pipe cutter Design: Design: - blade and ratchet feed from both sides - housing made of aluminium die casting, red varnished - replaceable hardened blades - blade made of special tool steel, oil-hardened - wide pipe-rest for right-angled cut - for burr-free cutting of plastic pipes (e.g. plastic armoured conduits) - blade exchangeable and retrievable from any position Use: - low effort required due to special cutting edge geometry and Plastic pipe shears for easy and effortless optional transmission ratio one-hand cutting of PE, PP, PB and PVDF pipes. Particularly suitable for the preparation of socket welding 559780 with ratchet feed Type 559780 Cutting area 559809 for plastic pipesmm 32 42 0 - 32 0 - 42  for tube Xmm 559809 Weightg Cutting edge length:mm 63  0 - 63  6,0-35  583 35 55/1090 www.precitool.de Pliers / Knives / Installation
