Общий каталог PRECITOOL - страница 1070

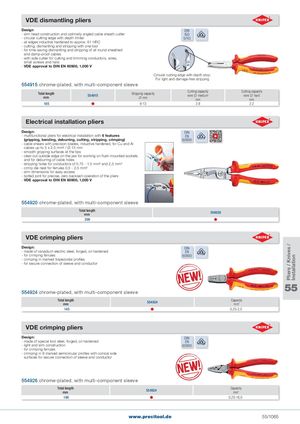

VDE dismantling pliers Design DIN - slim head construction and optimally angled cable sheath cutter ISO - circular cutting edge with depth limiter 5743 - all edges inductive hardened to approx. 61 HRC - cutting, dismantling and stripping with one tool - for time-saving dismantling and stripping of all round sheathed and damp-proof cables - with side cutter for cutting and trimming conductors, wires, small screws and nails - VDE approval to DIN EN 60900, 1,000 V Circular cutting edge with depth stop: For light and damage-free stripping 554915 chrome-plated, with multi-component sleeve Total lengthmm 554915 Stripping capacityx mm Cutting capacitywire x mediummm Cutting capacitywire x hardmm 165  8-13  2.8 2.2 Electrical installation pliers Design: DIN - multifunctional pliers for electrical installation with 6 features EN (gripping, bending, deburring, cutting, stripping, crimping) 60900 - cable shears with precision blades, inductive hardened, for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm - smooth gripping surfaces at the tips - clear-cut outside edge on the jaw for working on flush-mounted sockets and for deburring of cable holes - stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm² - crimp die nest for ferrules 0.5 - 2.5 mm² - slim dimensions for easy access - bolted joint for precise, zero backlash operation of the pliers - VDE approval to DIN EN 60900, 1,000 V 554920 chrome-plated, with multi-component sleeve Total lengthmm 554920 200  VDE crimping pliers Design: DIN - made of vanadium electric steel, forged, oil-hardened EN - for crimping ferrules 60900 - crimping in marked trapezoidal profiles - for secure connection of sleeve and conductor 554924 chrome-plated, with multi-component sleeve 55 Total lengthmm 554924 Capacitymm² 145  0,25-2,5  VDE crimping pliers Design: DIN - made of special tool steel, forged, oil-hardened EN - light and slim construction 60900 - for crimping ferrules - crimping in 9 marked semicircular profiles with conical side surfaces for secure connection of sleeve and conductor 554926 chrome-plated, with multi-component sleeve Total lengthmm 554924 Capacitymm² 180  0,25-16,0  www.precitool.de 55/1065 Pliers / Knives / Installation
