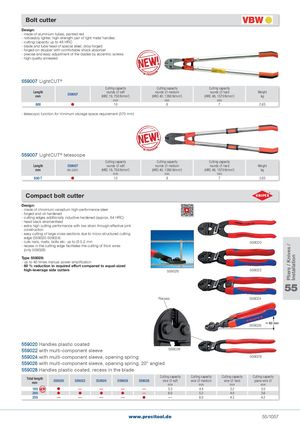

Общий каталог PRECITOOL - страница 1062

Bolt cutter Design: - made of aluminium tubes, painted red - noticeably lighter, high-strength pair of light metal handles - cutting capacity up to 48 HRC - blade and tube head of special steel, drop-forged - forged-on stopper with comfortable shock absorber - precise and easy adjustment of the blades by eccentric screws - high-quality annealed 559007 LightCUT® Cutting capacity Cutting capacity Cutting capacity Lengthmm 559007 rounds x soft rounds x medium rounds x hard(HRC 19, 750 N/mm²)(HRC 40, 1260 N/mm²)(HRC 48, 1570 N/mm²)Weightkg mm mm mm 800  10 8 7 2,65 - telescopic function for minimum storage space requirement (570 mm) 559007 LightCUT® telescope Cutting capacity Cutting capacity Cutting capacity Length 559007 rounds x soft rounds x medium rounds x hard Weight mm (RG 5587) (HRC 19, 750 N/mm²) (HRC 40, 1260 N/mm²) (HRC 48, 1570 N/mm²) kg mm mm mm 800-T  10 8 7 2,65 Compact bolt cutter Design: - made of chromium-vanadium high-performance steel - forged and oil-hardened - cutting edges additionally inductive hardened (approx. 64 HRC) - head black atramentised - extra high cutting performance with low strain through effective joint construction - easy cutting of large cross-sections due to micro-structured cutting edge (559020-559024) - cuts nails, rivets, bolts etc. up to Ø 5.2 mm 559020 - recess in the cutting edge facilitates the cutting of thick wires (only 559028) Type 559028: - up to 40 times manual power amplification - 60 % reduction in required effort compared to equal-sized high-leverage side cutters 559026 559022 55 Recess 559024 559026 559020 Handles plastic coated 559022 with multi-component sleeve 559028 559024 with multi-component sleeve, opening spring 559028 559026 with multi-component sleeve, opening spring, 20° angled 559028 Handles plastic coated, recess in the blade Total lengthmm 559020 559022 559024 559026 559028 Cutting capacity Cutting capacity Cutting capacity Cutting capacitywire x softwire x mediumwire x hardpiano wire xmmmmmmmm 160  — — — — 5.3 4.4 3.2 3.0 200     — 6.0 5.2 4.0 3.6 250 — — — —  — 6.0 4.3 4.2 www.precitool.de 55/1057 Pliers / Knives / Installation
