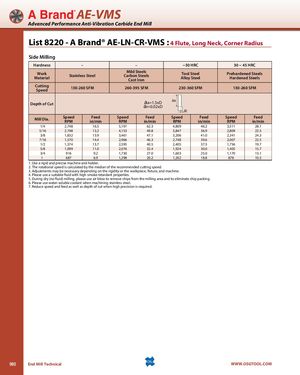

AE-VMS Advanced Performance Anti-Vibration Carbide End Mill List 8220 - A Brand® AE-LN-CR-VMS : 4 Flute, Long Neck, Corner Radius Side Milling Hardness – – ~30 HRC 30 ~ 45 HRC WorkMaterial Stainless Steel Mild SteelsCarbon SteelsCast Iron Tool Steel Prehardened SteelsAlloy SteelHardened Steels CuttingSpeed 130-260 SFM 260-395 SFM 230-360 SFM 130-260 SFM Depth of Cut aa=1.5xDar=0.02xD Mill Dia. SpeedRPM Feedin/min SpeedRPM Feedin/min SpeedRPM Feedin/min SpeedRPM Feedin/min 1/4 2,748 16.5 5,191 62.3 4,809 46.2 3,511 28.1 5/16 2,198 13.2 4,153 49.8 3,847 36.9 2,809 22.5 3/8 1,832 13.9 3,461 47.1 3,206 41.0 2,341 24.3 7/16 1,570 14.4 2,966 46.3 2,748 39.6 2,007 22.5 1/2 1,374 13.7 2,595 40.5 2,405 37.5 1,756 19.7 5/8 1,099 11.0 2,076 32.4 1,924 30.0 1,405 15.7 3/4 916 9.2 1,730 27.0 1,603 25.0 1,170 13.1 1 687 6.9 1,298 20.2 1,202 18.8 878 10.5 1. Use a rigid and precise machine and holder. 2. The rotational speed is calculated by the median of the recommended cutting speed. 3. Adjustments may be necessary depending on the rigidity or the workpiece, fixture, and machine. 4. Please use a suitable fluid with high smoke retardant properties. 5. During dry (no fluid) milling, please use air blow to remove chips from the milling area and to eliminate chip packing. 6. Please use water-soluble coolant when machining stainless steel. 7. Reduce speed and feed as well as depth of cut when high precision is required. 980 End Mill Technical WWW.OSGTOOL.COM
