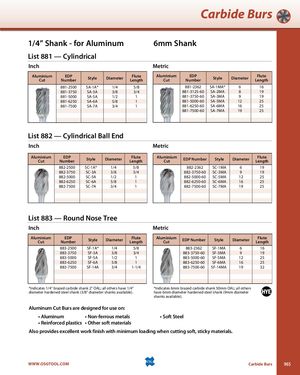

Общий каталог OSG 2018 - 2019 - страница 965

Carbide Burs 1/4” Shank - for Aluminum 6mm Shank List 881 — Cylindrical Inch Metric Aluminium EDPCutNumberStyle Diameter FluteLength Aluminium EDPCutNumberStyle Diameter FluteLength 881-2500 SA-1A* 1/4 5/8 881-2362 SA-1MA* 6 16 881-3750 SA-3A 3/8 3/4 881-3125-60 SA-2MA 8 19 881-5000 SA-5A 1/2 1 881-3750-60 SA-3MA 9 19 881-6250 SA-6A 5/8 1 881-5000-60 SA-5MA 12 25 881-7500 SA-7A 3/4 1 881-6250-60 SA-6MA 16 25 881-7500-60 SA-7MA 19 25 List 882 — Cylindrical Ball End Inch Metric Aluminium EDPCutNumberStyle Diameter FluteLength AluminiumCut EDP Number Style Diameter FluteLength 882-2500 SC-1A* 1/4 5/8 882-2362 SC-1MA 6 19 882-3750 SC-3A 3/8 3/4 882-3750-60 SC-3MA 9 19 882-5000 SC-5A 1/2 1 882-5000-60 SC-5MA 12 25 882-6250 SC-6A 5/8 1 882-6250-60 SC-6MA 16 25 882-7500 SC-7A 3/4 1 882-7500-60 SC-7MA 19 25 List 883 — Round Nose Tree Inch Metric Aluminium EDPCutNumberStyle Diameter FluteLength AluminiumCut EDP Number Style Diameter FluteLength 883-2500 SF-1A* 1/4 5/8 883-2362 SF-1MA 6 16 883-3750 SF-3A 3/8 3/4 883-3750-60 SF-3MA 9 19 883-5000 SF-5A 1/2 1 883-5000-60 SF-5MA 12 25 883-6250 SF-6A 5/8 1 883-6250-60 SF-6MA 16 25 883-7500 SF-14A 3/4 1-1/4 883-7500-60 SF-14MA 19 32 *Indicates 1/4” brazed carbide shank 2” OAL; all others have 1/4” *Indicates 6mm brazed carbide shank 50mm OAL; all others diameter hardened steel shank (3/8” diameter shanks available). have 6mm diameter hardened steel shank (9mm diameter shanks available). Aluminum Cut Burs are designed for use on: • Aluminum • Non-ferrous metals • Soft Steel • Reinforced plastics • Other soft materials Also provides excellent work finish with minimum loading when cutting soft, sticky materials. WWW.OSGTOOL.COM Carbide Burs 965
