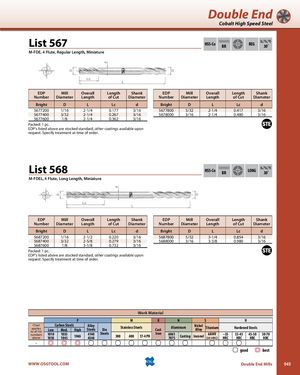

Double End Cobalt High Speed Steel List 567 HSS-Co BR REG 30˚ M-FDE, 4 Flute, Regular Length, Miniature EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 5677200 1/16 2-1/4 0.177 3/16 5677800 5/32 2-1/4 0.417 3/16 5677400 3/32 2-1/4 0.267 3/16 5678000 3/16 2-1/4 0.480 3/16 5677600 1/8 2-1/4 0.362 3/16 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 568 HSS-Co BR LONG 30˚ M-FDEL, 4 Flute, Long Length, Miniature EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 5687200 1/16 2-1/2 0.220 3/16 5687800 5/32 3-1/4 0.854 3/16 5687400 3/32 2-5/8 0.279 3/16 5688000 3/16 3-3/8 0.980 3/16 5687600 1/8 3-1/8 0.732 3/16 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best WWW.OSGTOOL.COM Double End Mills 949
