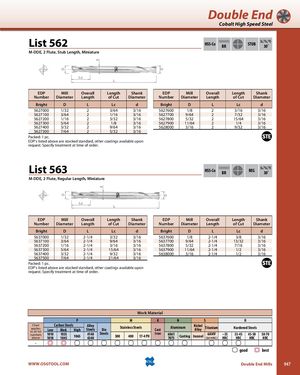

Double End Cobalt High Speed Steel List 562 HSS-Co BR STUB 30˚ M-DDE, 2 Flute, Stub Length, Miniature EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 5627000 1/32 2 3/64 3/16 5627600 1/8 2 3/16 3/16 5627100 3/64 2 1/16 3/16 5627700 9/64 2 7/32 3/16 5627200 1/16 2 3/32 3/16 5627800 5/32 2 15/64 3/16 5627300 5/64 2 1/8 3/16 5627900 11/64 2 1/4 3/16 5627400 3/32 2 9/64 3/16 5628000 3/16 2 9/32 3/16 5627500 7/64 2 5/32 3/16 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 563 HSS-Co BR REG 30˚ M-DDE, 2 Flute, Regular Length, Miniature EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 5637000 1/32 2-1/4 3/32 3/16 5637600 1/8 2-1/4 3/8 3/16 5637100 3/64 2-1/4 9/64 3/16 5637700 9/64 2-1/4 13/32 3/16 5637200 1/16 2-1/4 3/16 3/16 5637800 5/32 2-1/4 7/16 3/16 5637300 5/64 2-1/4 15/64 3/16 5637900 11/64 2-1/4 1/2 3/16 5637400 3/32 2-1/4 9/32 3/16 5638000 3/16 2-1/4 1/2 3/16 5637500 7/64 2-1/4 21/64 3/16 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best WWW.OSGTOOL.COM Double End Mills 947
