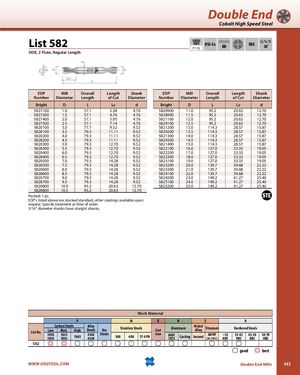

Общий каталог OSG 2018 - 2019 - страница 943

Double End Cobalt High Speed Steel List 582 SPEEDFEED HSS-CoP1132 BR REG 30˚ DDE, 2 Flute, Regular Length EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 5827100 1.0 57.1 2.38 4.76 5820900 11.0 95.2 20.63 12.70 5827200 1.5 57.1 4.76 4.76 5828900 11.5 95.2 20.63 12.70 5827400 2.0 57.1 5.95 4.76 5821100 12.0 95.2 20.63 12.70 5827500 2.5 57.1 7.14 4.76 5829100 12.5 95.2 20.63 12.70 5820100 3.0 77.7 9.52 9.52 5821200 13.0 114.3 28.57 15.87 5828100 3.5 79.3 11.11 9.52 5829200 13.5 114.3 28.57 15.87 5820200 4.0 79.3 11.11 9.52 5821300 14.0 114.3 28.57 15.87 5828200 4.5 79.3 11.11 9.52 5829300 14.5 114.3 28.57 15.87 5820300 5.0 79.3 12.70 9.52 5821400 15.0 114.3 28.57 15.87 5828300 5.5 79.3 12.70 9.52 5822100 16.0 127.0 33.33 19.05 5820400 6.0 79.3 12.70 9.52 5822200 17.0 127.0 33.33 19.05 5828400 6.5 79.3 12.70 9.52 5822300 18.0 127.0 33.33 19.05 5820500 7.0 79.3 14.28 9.52 5823100 19.0 127.0 33.33 19.05 5828500 7.5 79.3 14.28 9.52 5823200 20.0 139.7 39.68 22.22 5820600 8.0 79.3 14.28 9.52 5823300 21.0 139.7 39.68 22.22 5828600 8.5 79.3 14.28 9.52 5824100 22.0 139.7 39.68 22.22 5820700 9.0 79.3 14.28 9.52 5824200 23.0 149.2 41.27 25.40 5828700 9.5 79.3 14.28 9.52 5825100 24.0 149.2 41.27 25.40 5820800 10.0 95.2 20.63 12.70 5825200 25.0 149.2 41.27 25.40 5828800 10.5 95.2 20.63 12.70 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. 3/16” diameter shanks have straight shanks. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie106541404340SteelsStainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 582 good best WWW.OSGTOOL.COM Double End Mills 943
