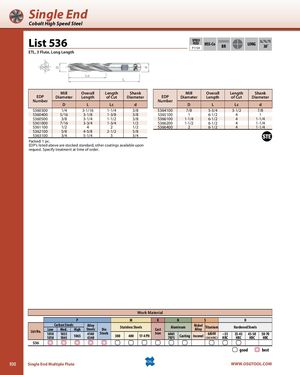

Single End Cobalt High Speed Steel List 536 SPEEDFEED HSS-CoP1134 BR LONG 30˚ ETL, 3 Flute, Long Length Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 5360300 1/4 3-1/16 1-1/4 3/8 5364100 7/8 5-3/4 3-1/2 7/8 5360400 5/16 3-1/8 1-3/8 3/8 5365100 1 6-1/2 4 1 5360500 3/8 3-1/4 1-1/2 3/8 5366100 1-1/4 6-1/2 4 1-1/4 5361000 7/16 3-3/4 1-3/4 1/2 5366200 1-1/2 6-1/2 4 1-1/4 5361100 1/2 4 2 1/2 5366400 2 6-1/2 4 1-1/4 5362100 5/8 4-5/8 2-1/2 5/8 5363100 3/4 5-1/4 3 3/4 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 536 good best 930 Single End Multiple Flute WWW.OSGTOOL.COM
