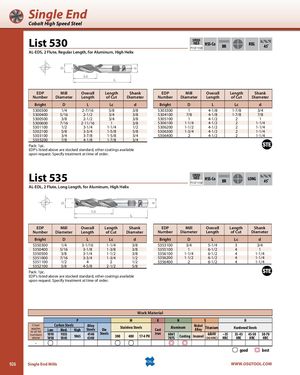

Общий каталог OSG 2018 - 2019 - страница 926

Single End Cobalt High Speed Steel List 530 SPEEDFEED HSS-CoP1127-1128BR REG 45˚ AL-EDS, 2 Flute, Regular Length, for Aluminum, High Helix EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 5300300 1/4 2-7/16 5/8 3/8 5303300 1 4-1/8 1-7/8 3/4 5300400 5/16 2-1/2 3/4 3/8 5304100 7/8 4-1/8 1-7/8 7/8 5300500 3/8 2-1/2 3/4 3/8 5305100 1 4-1/2 2 1 5300600 7/16 2-11/16 1 3/8 5306100 1-1/4 4-1/2 2 1-1/4 5301100 1/2 3-1/4 1-1/4 1/2 5306200 1-1/2 4-1/2 2 1-1/4 5302100 5/8 3-3/4 1-5/8 5/8 5306300 1-3/4 4-1/2 2 1-1/4 5303100 3/4 3-7/8 1-5/8 3/4 5306400 2 4-1/2 2 1-1/4 5303200 7/8 4-1/8 1-7/8 3/4 Pack: 1pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 535 SPEEDFEED HSS-CoP1127-1128BR LONG 45˚ AL-EDL, 2 Flute, Long Length, for Aluminum, High Helix EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Diameter Length of Cut Diameter Bright D L Lc d Bright D L Lc d 5350300 1/4 3-1/16 1-1/4 3/8 5353100 3/4 5-1/4 3 3/4 5350400 5/16 3-1/8 1-3/8 3/8 5355100 1 6-1/2 4 1 5350500 3/8 3-1/4 1-1/2 3/8 5356100 1-1/4 6-1/2 4 1-1/4 5351000 7/16 3-3/4 1-3/4 1/2 5356200 1-1/2 6-1/2 4 1-1/4 5351100 1/2 4 2 1/2 5356400 2 6-1/2 4 1-1/4 5352100 5/8 4-5/8 2-1/2 5/8 Pack: 1pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best 926 Single End Mills WWW.OSGTOOL.COM
