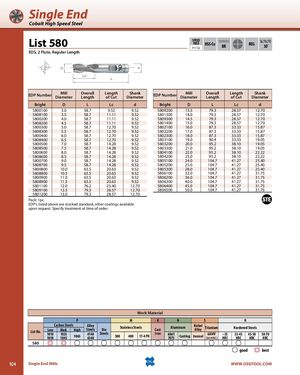

Общий каталог OSG 2018 - 2019 - страница 924

Single End Cobalt High Speed Steel List 580 SPEEDFEED HSS-CoP1132 BR REG 30˚ EDS, 2 Flute, Regular Length EDP Number MillDiameter OverallLengthLength Shankof CutDiameterEDP Number MillDiameter OverallLength Length Shankof CutDiameter Bright D L Lc d Bright D L Lc d 5800100 3.0 58.7 9.52 9.52 5809200 13.5 79.3 28.57 12.70 5808100 3.5 58.7 11.11 9.52 5801300 14.0 79.3 28.57 12.70 5800200 4.0 58.7 11.11 9.52 5809300 14.5 79.3 28.57 12.70 5808200 4.5 58.7 11.11 9.52 5801400 15.0 79.3 28.57 12.70 5800300 5.0 58.7 12.70 9.52 5802100 16.0 87.3 33.33 15.87 5808300 5.5 58.7 12.70 9.52 5802200 17.0 87.3 33.33 15.87 5800400 6.0 58.7 12.70 9.52 5802300 18.0 87.3 33.33 15.87 5808400 6.5 58.7 12.70 9.52 5803100 19.0 90.4 33.33 19.05 5800500 7.0 58.7 14.28 9.52 5803200 20.0 95.2 38.10 19.05 5808500 7.5 58.7 14.28 9.52 5803300 21.0 95.2 38.10 19.05 5800600 8.0 58.7 14.28 9.52 5804100 22.0 95.2 38.10 22.22 5808600 8.5 58.7 14.28 9.52 5804200 23.0 95.2 38.10 22.22 5800700 9.0 58.7 14.28 9.52 5805100 24.0 104.7 41.27 25.40 5808700 9.5 58.7 14.28 9.52 5805200 25.0 104.7 41.27 25.40 5800800 10.0 63.5 20.63 9.52 5805300 28.0 104.7 41.27 25.40 5808800 10.5 63.5 20.63 9.52 5806100 32.0 104.7 41.27 31.75 5800900 11.0 63.5 20.63 9.52 5806200 36.0 104.7 41.27 31.75 5808900 11.5 63.5 20.63 9.52 5806300 40.0 104.7 41.27 31.75 5801100 12.0 76.2 25.40 12.70 5806400 45.0 104.7 41.27 31.75 5809100 12.5 79.3 28.57 12.70 5806500 50.0 104.7 41.27 31.75 5801200 13.0 79.3 28.57 12.70 Pack: 1pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 580 good best 924 Single End Mills WWW.OSGTOOL.COM
