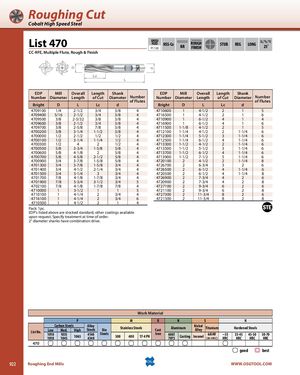

Общий каталог OSG 2018 - 2019 - страница 922

Roughing Cut Cobalt High Speed Steel List 470 SPEEDFEEDHSS-CoP1120BR ROUGHFINISH STUB REG LONG 25˚ CC-RFE, Multiple Flute, Rough & Finish EDP Mill Overall Length Shank EDP Mill Overall Length Shank Number Diameter Length of Cut Diameter Number Number Diameter Length of Cut Diameter Number of Flutes of Flutes Bright D L Lc d Bright D L Lc d 4709100 1/4 2-1/2 3/4 3/8 4 4710600 1 4-1/2 2 1 5 4709400 5/16 2-1/2 3/4 3/8 4 4716500 1 4-1/2 2 1 6 4709500 3/8 2-5/32 3/8 3/8 4 4710900 1 6-1/2 4 1 4 4709600 3/8 2-1/2 3/4 3/8 4 4716900 1 6-1/2 4 1 6 4709700 3/8 2-5/8 7/8 3/8 4 4711500 1-1/8 4-1/2 2 1 5 4700200 3/8 3-1/4 1-1/2 3/8 4 4712100 1-1/4 4-1/2 2 1-1/4 6 4700000 1/2 2-1/2 1/2 1/2 4 4712300 1-1/4 5-1/2 3 1-1/4 6 4700100 1/2 3-1/4 1-1/4 1/2 4 4712500 1-1/4 6-1/2 4 1-1/4 6 4700300 1/2 4 2 1/2 4 4713300 1-1/2 4-1/2 2 1-1/4 6 4700500 5/8 3-3/4 1-5/8 5/8 4 4713500 1-1/2 5-1/2 3 1-1/4 6 4700600 5/8 4-1/8 2 5/8 4 4713700 1-1/2 6-1/2 4 1-1/4 6 4700700 5/8 4-5/8 2-1/2 5/8 4 4713900 1-1/2 7-1/2 5 1-1/4 6 4700900 3/4 3-7/8 1-5/8 5/8 4 4720100 2 4-1/2 2 1-1/4 8 4701300 3/4 3-7/8 1-5/8 3/4 4 4726700 2 6-3/4 3 2 6 4701400 3/4 4-1/2 2-1/4 3/4 4 4726500 2 6-1/2 4 1-1/4 6 4701500 3/4 5-1/4 3 3/4 4 4720500 2 6-1/2 4 1-1/4 8 4701700 7/8 4-1/8 1-7/8 3/4 4 4726900 2 7-3/4 4 2 6 4701900 7/8 5-3/4 3-1/2 3/4 5 4720900 2 7-3/4 4 2 8 4702100 7/8 4-1/8 1-7/8 7/8 4 4727100 2 9-3/4 6 2 6 4710000 1 3-1/2 1 1 5 4721100 2 9-3/4 6 2 8 4710100 1 4-1/4 2 3/4 4 4727300 2 11-3/4 8 2 6 4716100 1 4-1/4 2 3/4 6 4721300 2 11-3/4 8 2 8 4710500 1 4-1/2 2 1 4 Pack: 1pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. 2” diameter shanks have combination drive. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 470 good best 922 Roughing End Mills WWW.OSGTOOL.COM
