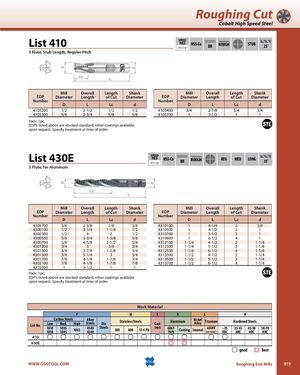

Roughing Cut Cobalt High Speed Steel List 410 SPEEDFEED HSS-CoP1119BR ROUGH STUB 25˚ 3 Flute, Stub Length, Regular Pitch Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 4105200 1/2 2-1/2 1/2 1/2 4105400 3/4 2-7/8 3/4 3/4 4105300 5/8 2-3/4 5/8 5/8 4105700 1 3-1/2 1 1 Pack: 1pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 430E SPEEDFEEDHSS-CoP1118BR ROUGH REG MED LONG 35˚ 3 Flute, for Aluminum Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter EDP Diameter Length of Cut Diameter Number Number D L Lc d D L Lc d 4309700 3/8 2-5/8 7/8 3/8 4310100 1 4-1/4 2 3/4 4300100 1/2 3-1/4 1-1/4 1/2 4310500 1 4-1/2 2 1 4300300 1/2 4 2 1/2 4310700 1 5-1/2 3 1 4300500 5/8 3-3/4 1-5/8 5/8 4310900 1 6-1/2 4 1 4300700 5/8 4-5/8 2-1/2 5/8 4312100 1-1/4 4-1/2 2 1-1/4 4301200 3/4 3 3/4 3/4 4312300 1-1/4 5-1/2 3 1-1/4 4301300 3/4 3-7/8 1-5/8 3/4 4312500 1-1/4 6-1/2 4 1-1/4 4301500 3/4 5-1/4 3 3/4 4313300 1-1/2 4-1/2 2 1-1/4 4301700 7/8 4-1/8 1-7/8 3/4 4313500 1-1/2 5-1/2 3 1-1/4 4302100 7/8 4-1/8 1-7/8 7/8 4313700 1-1/2 6-1/2 4 1-1/4 4310300 1 3-1/2 1 1 Pack: 1pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 410 430E good best WWW.OSGTOOL.COM Roughing End Mills 919
