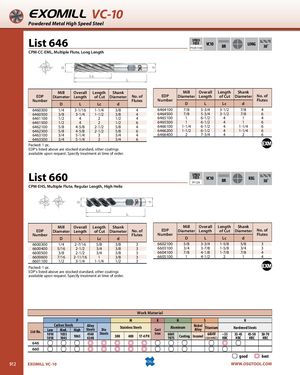

Общий каталог OSG 2018 - 2019 - страница 912

EXOMILL VC-10 Powdered Metal High Speed Steel List 646 SPEEDFEED VC10P1129-1130BR LONG 30˚ CPM-CC-EML, Multiple Flute, Long Length Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter No. of EDP Diameter Length of Cut Diameter No. of Number Flutes Number Flutes D L Lc d D L Lc d 6460300 1/4 3-1/16 1-1/4 3/8 4 6464100 7/8 5-3/4 3-1/2 7/8 4 6460500 3/8 3-1/4 1-1/2 3/8 4 6464500 7/8 5-3/4 3-1/2 7/8 6 6461100 1/2 4 2 1/2 4 6465100 1 6-1/2 4 1 4 6461500 1/2 4 2 1/2 6 6465500 1 6-1/2 4 1 6 6462100 5/8 4-5/8 2-1/2 5/8 4 6466100 1-1/4 6-1/2 4 1-1/4 6 6462500 5/8 4-5/8 2-1/2 5/8 6 6466200 1-1/2 6-1/2 4 1-1/4 6 6463100 3/4 5-1/4 3 3/4 4 6466400 2 7-3/4 4 2 6 6463500 3/4 5-1/4 3 3/4 6 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. List 660 SPEEDFEED VC10P1124 BR REG 50˚ CPM-EHS, Multiple Flute, Regular Length, High Helix Mill Overall Length Shank Mill Overall Length Shank EDP Diameter Length of Cut Diameter No. of EDP Diameter Length of Cut Diameter No. of Number Flutes Number Flutes D L Lc d D L Lc d 6600300 1/4 2-7/16 5/8 3/8 3 6602100 5/8 3-3/4 1-5/8 5/8 3 6600400 5/16 2-1/2 3/4 3/8 3 6603100 3/4 3-7/8 1-5/8 3/4 3 6600500 3/8 2-1/2 3/4 3/8 3 6604100 7/8 4-1/8 1-7/8 7/8 4 6600600 7/16 2-11/16 1 3/8 3 6605100 1 4-1/2 2 1 4 6601100 1/2 3-1/4 1-1/4 1/2 3 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 646 660 good best 912 EXOMILL VC-10 WWW.OSGTOOL.COM
