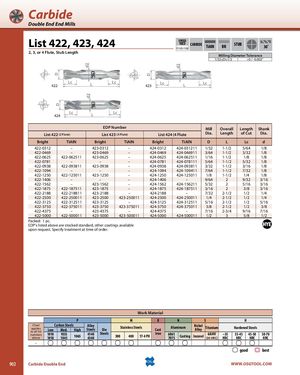

DD d2d2 D d2 Carbide Double End End Mills List 422, 423, 424 SPEEDFEED CARBIDEP1105-1108TiAINBR STUB 30˚ 2, 3, or 4 Flute, Stub Length Milling Diameter Tolerance 1/32≤D≤1/2 +0 / -0.002" Lc422 L Lc 423 Lc L Lc Lc424 L Lc EDP Number Mill Overall Length Shank List 422 (2 Flute) List 423 (3 Flute) List 424 (4 Flute Dia. Length of Cut Dia. Bright TiAlN Bright TiAlN Bright TiAlN D L Lc d 422-0312 – 423-0312 – 424-0312 424-031211 1/32 1-1/2 5/64 1/8 422-0469 – 423-0469 – 424-0469 424-046911 3/64 1-1/2 3/32 1/8 422-0625 422-062511 423-0625 – 424-0625 424-062511 1/16 1-1/2 1/8 1/8 422-0781 – – – 424-0781 424-078111 5/64 1-1/2 5/32 1/8 422-0938 422-093811 423-0938 – 424-0938 424-093811 3/32 1-1/2 3/16 1/8 422-1094 – – – 424-1094 424-109411 7/64 1-1/2 7/32 1/8 422-1250 422-125011 423-1250 – 424-1250 424-125011 1/8 1-1/2 1/4 1/8 422-1406 – – – 424-1406 – 9/64 2 9/32 3/16 422-1562 – 423-1562 – 424-1562 424-156211 5/32 2 5/16 3/16 422-1875 422-187511 423-1875 – 424-1875 424-187511 3/16 2 3/8 3/16 422-2188 422-218811 423-2188 – 424-2188 – 7/32 2-1/2 1/2 1/4 422-2500 422-250011 423-2500 423-250011 424-2500 424-250011 1/4 2-1/2 1/2 1/4 422-3125 422-312511 423-3125 – 424-3125 424-312511 5/16 2-1/2 1/2 5/16 422-3750 422-375011 423-3750 423-375011 424-3750 424-375011 3/8 2-1/2 1/2 3/8 422-4375 – 423-4375 – 424-4375 – 7/16 2-3/4 9/16 7/16 422-5000 422-500011 423-5000 423-500011 424-5000 424-500011 1/2 3 5/8 1/2 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045High1065SteelsDie4140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best 902 Carbide Double End WWW.OSGTOOL.COM
