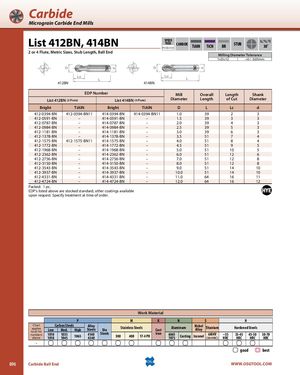

Общий каталог OSG 2018 - 2019 - страница 896

Carbide Micrograin Carbide End Mills List 412BN, 414BN SPEEDFEED CARBIDEP1110-1111TiAINTiCN BR STUB 30˚ 2 or 4 Flute, Metric Sizes, Stub Length, Ball End Milling Diameter Tolerance 1≤D≤12 +0 / -0.05mm 412BN 414BN EDP Number Mill Overall Length Shank List 412BN (2 Flute) List 414BN (4 Flute) Diameter Length of Cut Diameter Bright TiAlN Bright TiAlN D L Lc d 412-0394-BN 412-0394-BN11 414-0394-BN 414-0394-BN11 1.0 39 2 3 412-0591-BN – 414-0591-BN – 1.5 39 3 3 412-0787-BN – 414-0787-BN – 2.0 39 4 3 412-0984-BN – 414-0984-BN – 2.5 39 5 3 412-1181-BN – 414-1181-BN – 3.0 39 6 3 412-1378-BN – 414-1378-BN – 3.5 51 7 4 412-1575-BN 412-1575-BN11 414-1575-BN – 4.0 51 8 4 412-1772-BN – 414-1772-BN – 4.5 51 9 5 412-1968-BN – 414-1968-BN – 5.0 51 10 5 412-2362-BN – 414-2362-BN – 6.0 51 12 6 412-2756-BN – 414-2756-BN – 7.0 51 12 8 412-3150-BN – 414-3150-BN – 8.0 51 12 8 412-3543-BN – 414-3543-BN – 9.0 51 14 10 412-3937-BN – 414-3937-BN – 10.0 51 14 10 412-4331-BN – 414-4331-BN – 11.0 64 16 11 412-4724-BN – 414-4724-BN – 12.0 64 16 12 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Chart Carbon Steels Alloyappliesto all listLownumbers1010above1018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC - good best 896 Carbide Ball End WWW.OSGTOOL.COM
