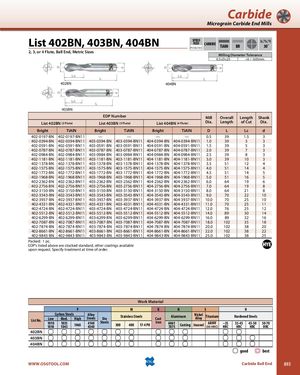

Carbide Micrograin Carbide End Mills List 402BN, 403BN, 404BN SPEEDFEED CARBIDEP1110-1111TiAINBR 30˚ 2, 3, or 4 Flute, Ball End, Metric Sizes Milling Diameter Tolerance 0.5≤D≤25 +0 / -0.05mm 402BN 404BN 403BN EDP Number Mill Overall Length Shank List 402BN (2 Flute) List 403BN (3 Flute) List 404BN (4 Flute) Dia. Length of Cut Dia. Bright TiAlN Bright TiAlN Bright TiAlN D L Lc d 402-0197-BN 402-0197-BN11 — — — — 0.5 39 1.5 3 402-0394-BN 402-0394-BN11 403-0394-BN 403-0394-BN11 404-0394-BN 404-0394-BN11 1.0 39 3 3 402-0591-BN 402-0591-BN11 403-0591-BN 403-0591-BN11 404-0591-BN 404-0591-BN11 1.5 39 5 3 402-0787-BN 402-0787-BN11 403-0787-BN 403-0787-BN11 404-0787-BN 404-0787-BN11 2.0 39 7 3 402-0984-BN 402-0984-BN11 403-0984-BN 403-0984-BN11 404-0984-BN 404-0984-BN11 2.5 39 8 3 402-1181-BN 402-1181-BN11 403-1181-BN 403-1181-BN11 404-1181-BN 404-1181-BN11 3.0 39 10 3 402-1378-BN 402-1378-BN11 403-1378-BN 403-1378-BN11 404-1378-BN 404-1378-BN11 3.5 51 12 4 402-1575-BN 402-1575-BN11 403-1575-BN 403-1575-BN11 404-1575-BN 404-1575-BN11 4.0 51 14 4 402-1772-BN 402-1772-BN11 403-1772-BN 403-1772-BN11 404-1772-BN 404-1772-BN11 4.5 51 14 5 402-1968-BN 402-1968-BN11 403-1968-BN 403-1968-BN11 404-1968-BN 404-1968-BN11 5.0 51 16 5 402-2362-BN 402-2362-BN11 403-2362-BN 403-2362-BN11 404-2362-BN 404-2362-BN11 6.0 64 19 6 402-2756-BN 402-2756-BN11 403-2756-BN 403-2756-BN11 404-2756-BN 404-2756-BN11 7.0 64 19 8 402-3150-BN 402-3150-BN11 403-3150-BN 403-3150-BN11 404-3150-BN 404-3150-BN11 8.0 64 21 8 402-3543-BN 402-3543-BN11 403-3543-BN 403-3543-BN11 404-3543-BN 404-3543-BN11 9.0 70 22 10 402-3937-BN 402-3937-BN11 403-3937-BN 403-3937-BN11 404-3937-BN 404-3937-BN11 10.0 70 25 10 402-4331-BN 402-4331-BN11 403-4331-BN 403-4331-BN11 404-4331-BN 404-4331-BN11 11.0 70 25 11 402-4724-BN 402-4724-BN11 403-4724-BN 403-4724-BN11 404-4724-BN 404-4724-BN11 12.0 76 25 12 402-5512-BN 402-5512-BN11 403-5512-BN 403-5512-BN11 404-5512-BN 404-5512-BN11 14.0 89 30 14 402-6299-BN 402-6299-BN11 403-6299-BN 403-6299-BN11 404-6299-BN 404-6299-BN11 16.0 89 32 16 402-7087-BN 402-7087-BN11 403-7087-BN 403-7087-BN11 404-7087-BN 404-7087-BN11 18.0 102 35 18 402-7874-BN 402-7874-BN11 403-7874-BN 403-7874-BN11 404-7874-BN 404-7874-BN11 20.0 102 38 20 402-8661-BN 402-8661-BN11 403-8661-BN 403-8661-BN11 404-8661-BN 404-8661-BN11 22.0 102 38 22 402-9843-BN 402-9843-BN11 403-9843-BN 403-9843-BN11 404-9843-BN 404-9843-BN11 25.0 102 38 25 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 402BN 403BN 404BN good best WWW.OSGTOOL.COM Carbide Ball End 893
