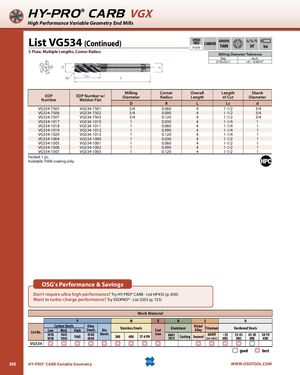

HY-PRO® CARB VGX High Performance Variable Geometry End Mills List VG534 (Continued) SPEEDFEEDP1079CARBIDE TiAIN SHANK38˚h6 5 Flute, Multiple Lengths, Corner Radius Milling Diameter Tolerance Size inch 3/16≤D≤1 +0 / -0.0015" Milling Corner Overall Length Shank EDP EDP Number w/ Diameter Radius Length of Cut Diameter Number Weldon Flat D R L Lc d VG534-7505 VG534-7501 3/4 0.060 4 1-1/2 3/4 VG534-7506 VG534-7502 3/4 0.090 4 1-1/2 3/4 VG534-7507 VG534-7503 3/4 0.120 4 1-1/2 3/4 VG534-1017 VG534-1010 1 0.030 4 1-1/4 1 VG534-1018 VG534-1011 1 0.060 4 1-1/4 1 VG534-1019 VG534-1012 1 0.090 4 1-1/4 1 VG534-1020 VG534-1013 1 0.120 4 1-1/4 1 VG534-1004 VG534-1000 1 0.030 4 1-1/2 1 VG534-1005 VG534-1001 1 0.060 4 1-1/2 1 VG534-1006 VG534-1002 1 0.090 4 1-1/2 1 VG534-1007 VG534-1003 1 0.120 4 1-1/2 1 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® CARB - List HP455 (p. 859) Want to turbo-charge performance? Try EXOPRO® - List 2055 (p. 725) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC VG534 good best 848 HY-PRO® CARB Variable Geometry WWW.OSGTOOL.COM
