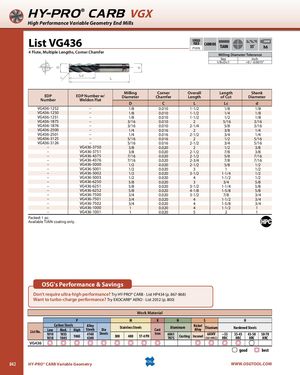

C HY-PRO® CARB VGX High Performance Variable Geometry End Mills List VG436 SPEEDFEEDP1076CARBIDE TiAIN SHANK35˚h6 4 Flute, Multiple Lengths, Corner Chamfer Milling Diameter Tolerance Size inch 1/8≤D≤1 +0 / -0.0015" Milling Corner Overall Length Shank EDP EDP Number w/ Diameter Chamfer Length of Cut Diameter Number Weldon Flat D C L Lc d VG436-1252 – 1/8 0.010 1-1/2 1/8 1/8 VG436-1250 – 1/8 0.010 1-1/2 1/4 1/8 VG436-1251 – 1/8 0.010 1-1/2 1/2 1/8 VG436-1875 – 3/16 0.010 2 5/16 3/16 VG436-1876 – 3/16 0.010 2-1/4 5/8 3/16 VG436-2500 – 1/4 0.016 2 3/8 1/4 VG436-2501 – 1/4 0.016 2-1/2 3/4 1/4 VG436-3125 – 5/16 0.016 2 1/2 5/16 VG436-3126 – 5/16 0.016 2-1/2 3/4 5/16 – VG436-3750 3/8 0.020 2 1/2 3/8 – VG436-3751 3/8 0.020 2-1/2 7/8 3/8 – VG436-4375 7/16 0.020 2-1/2 5/8 7/16 – VG436-4376 7/16 0.020 2-3/4 7/8 7/16 – VG436-5000 1/2 0.020 2-1/2 5/8 1/2 – VG436-5001 1/2 0.020 3 1 1/2 – VG436-5002 1/2 0.020 3-1/2 1-1/4 1/2 – VG436-5003 1/2 0.020 4 1-1/2 1/2 – VG436-6250 5/8 0.020 3 3/4 5/8 – VG436-6251 5/8 0.020 3-1/2 1-1/4 5/8 – VG436-6252 5/8 0.020 4-1/8 1-5/8 5/8 – VG436-7500 3/4 0.020 3-1/2 7/8 3/4 – VG436-7501 3/4 0.020 4 1-1/2 3/4 – VG436-7502 3/4 0.020 4 1-5/8 3/4 – VG436-1000 1 0.020 4 1-1/2 1 – VG436-1001 1 0.020 5 2 1 Packed: 1 pc. Available TiAlN coating only. OSG's Performance & Savings Don't require ultra-high performance? Try HY-PRO® CARB - List HP434 (p. 867-868) Want to turbo-charge performance? Try EXOCARB® AERO - List 2052 (p. 800) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC VG436 good best 842 HY-PRO® CARB Variable Geometry WWW.OSGTOOL.COM
