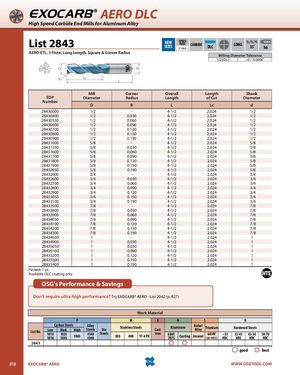

Общий каталог OSG 2018 - 2019 - страница 818

D d EXOCARB® AERO DLC High Speed Carbide End Mills for Aluminum Alloy List 2843 NEWSIZESSPEEDFEED CARBIDEP1064DLC SHANKLONG35˚h6 AERO-ETL, 3 Flute, Long Length, Square & Corner Radius Milling Diameter Tolerance 1/2≤D≤1 +0 / -0.0008" R Lc L Mill Corner Overall Length Shank EDP Diameter Radius Length of Cut Diameter Number D R L Lc d 28430000 1/2 - 4-1/2 2.024 1/2 28430400 1/2 0.030 4-1/2 2.024 1/2 28430550 1/2 0.060 4-1/2 2.024 1/2 28430600 1/2 0.090 4-1/2 2.024 1/2 28430700 1/2 0.120 4-1/2 2.024 1/2 28430800 1/2 0.150 4-1/2 2.024 1/2 28430900 1/2 0.190 4-1/2 2.024 1/2 28431000 5/8 - 4-1/2 2.024 5/8 28431550 5/8 0.030 4-1/2 2.024 5/8 28431600 5/8 0.060 4-1/2 2.024 5/8 28431700 5/8 0.090 4-1/2 2.024 5/8 28431800 5/8 0.120 4-1/2 2.024 5/8 28431900 5/8 0.150 4-1/2 2.024 5/8 28432050 5/8 0.190 4-1/2 2.024 5/8 28432000 3/4 - 4-1/2 2.024 3/4 28432600 3/4 0.030 4-1/2 2.024 3/4 28432700 3/4 0.060 4-1/2 2.024 3/4 28432800 3/4 0.090 4-1/2 2.024 3/4 28432900 3/4 0.120 4-1/2 2.024 3/4 28433050 3/4 0.150 4-1/2 2.024 3/4 28433100 3/4 0.190 4-1/2 2.024 3/4 28433500 7/8 - 4-1/2 2.024 7/8 28433800 7/8 0.030 4-1/2 2.024 7/8 28433900 7/8 0.060 4-1/2 2.024 7/8 28434050 7/8 0.090 4-1/2 2.024 7/8 28434100 7/8 0.120 4-1/2 2.024 7/8 28434200 7/8 0.150 4-1/2 2.024 7/8 28434300 7/8 0.190 4-1/2 2.024 7/8 28434500 1 - 4-1/2 2.024 1 28434900 1 0.030 4-1/2 2.024 1 28435050 1 0.030 4-1/2 2.024 1 28435100 1 0.090 4-1/2 2.024 1 28435200 1 0.120 4-1/2 2.024 1 28435300 1 0.150 4-1/2 2.024 1 28435400 1 0.190 4-1/2 2.024 1 Packed: 1 pc. Available DLC coating only. OSG's Performance & Savings Don't require ultra-high performance? Try EXOCARB® AERO - List 2042 (p. 827) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2843 good best 818 EXOCARB® AERO WWW.OSGTOOL.COM
