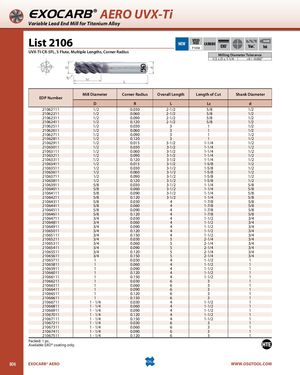

Общий каталог OSG 2018 - 2019 - страница 806

D d EXOCARB® AERO UVX-Ti Variable Lead End Mill for Titanium Alloy List 2106 SPEEDNEWFEEDP1058 CARBIDE EXO® SHANKVar.˚h6 UVX-TI-CR-5FL, 5 Flute, Multiple Lengths, Corner Radius Milling Diameter Tolerance 1/2 ≤ D ≤ 1-1/4 +0 / -0.002" R Lc L Mill Diameter Corner Radius Overall Length Length of Cut Shank Diameter EDP Number D R L Lc d 21062111 1/2 0.030 2-1/2 5/8 1/2 21062211 1/2 0.060 2-1/2 5/8 1/2 21062311 1/2 0.090 2-1/2 5/8 1/2 21062411 1/2 0.120 2-1/2 5/8 1/2 21062511 1/2 0.030 3 1 1/2 21062611 1/2 0.060 3 1 1/2 21062711 1/2 0.090 3 1 1/2 21062811 1/2 0.120 3 1 1/2 21062911 1/2 0.015 3-1/2 1-1/4 1/2 21063011 1/2 0.030 3-1/2 1-1/4 1/2 21063111 1/2 0.060 3-1/2 1-1/4 1/2 21063211 1/2 0.090 3-1/2 1-1/4 1/2 21063311 1/2 0.120 3-1/2 1-1/4 1/2 21063411 1/2 0.015 3-1/2 1-5/8 1/2 21063511 1/2 0.030 3-1/2 1-5/8 1/2 21063611 1/2 0.060 3-1/2 1-5/8 1/2 21063711 1/2 0.090 3-1/2 1-5/8 1/2 21063811 1/2 0.120 3-1/2 1-5/8 1/2 21063911 5/8 0.030 3-1/2 1-1/4 5/8 21064011 5/8 0.060 3-1/2 1-1/4 5/8 21064111 5/8 0.090 3-1/2 1-1/4 5/8 21064211 5/8 0.120 3-1/2 1-1/4 5/8 21064311 5/8 0.030 4 1-7/8 5/8 21064411 5/8 0.060 4 1-7/8 5/8 21064511 5/8 0.090 4 1-7/8 5/8 21064611 5/8 0.120 4 1-7/8 5/8 21064711 3/4 0.030 4 1-1/2 3/4 21064811 3/4 0.060 4 1-1/2 3/4 21064911 3/4 0.090 4 1-1/2 3/4 21065011 3/4 0.120 4 1-1/2 3/4 21065111 3/4 0.150 4 1-1/2 3/4 21065211 3/4 0.030 5 2-1/4 3/4 21065311 3/4 0.060 5 2-1/4 3/4 21065411 3/4 0.090 5 2-1/4 3/4 21065511 3/4 0.120 5 2-1/4 3/4 21065611 3/4 0.150 5 2-1/4 3/4 21065711 1 0.030 4 1-1/2 1 21065811 1 0.060 4 1-1/2 1 21065911 1 0.090 4 1-1/2 1 21066011 1 0.120 4 1-1/2 1 21066111 1 0.150 4 1-1/2 1 21066211 1 0.030 6 3 1 21066311 1 0.060 6 3 1 21066411 1 0.090 6 3 1 21066511 1 0.120 6 3 1 21066611 1 0.150 6 3 1 21066711 1 - 1/4 0.030 4 1-1/2 1 21066811 1 - 1/4 0.060 4 1-1/2 1 21066911 1 - 1/4 0.090 4 1-1/2 1 21067011 1 - 1/4 0.120 4 1-1/2 1 21067111 1 - 1/4 0.150 4 1-1/2 1 21067211 1 - 1/4 0.030 6 3 1 21067311 1 - 1/4 0.060 6 3 1 21067411 1 - 1/4 0.090 6 3 1 21067511 1 - 1/4 0.120 6 3 1 Packed: 1 pc. Available EXO® coating only. 806 EXOCARB® AERO WWW.OSGTOOL.COM
