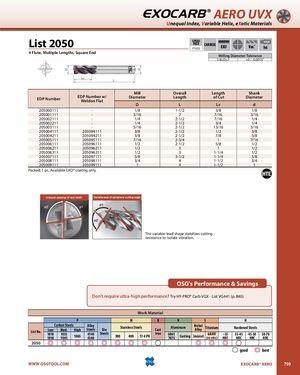

D d EXOCARB® AERO UVX Unequal Index, Variable Helix, eXotic Materials List 2050 SPEEDFEEDP1055CARBIDE EXO® SHANKVar.˚h6 4 Flute, Multiple Lengths, Square End Milling Diameter Tolerance 1/8≤D≤1 +0 / -0.0015" Lc L Mill Overall Length Shank EDP Number EDP Number w/Weldon Flat Diameter Length of Cut Diameter D L Lc d 205000111 - 1/8 1-1/2 3/8 1/8 205001111 - 3/16 2 7/16 3/16 205002111 - 1/4 2-1/2 7/16 1/4 205002211 - 1/4 2-1/2 3/4 1/4 205003111 - 5/16 2-1/2 13/16 5/16 205004111 205094111 3/8 2-1/2 1/2 3/8 205004211 205094211 3/8 2-1/2 7/8 3/8 205005111 205095111 7/16 2-3/4 1 7/16 205006111 205096111 1/2 2-1/2 5/8 1/2 205006211 205096211 1/2 3 1 1/2 205006311 205096311 1/2 3 1-1/4 1/2 205007111 205097111 5/8 3-1/2 1-1/4 5/8 205008111 205098111 3/4 4 1-1/2 3/4 205009111 205099111 1 4 1-1/2 1 Packed: 1 pc. Available EXO® coating only. The variable-lead shape stabilizes cutting resistance to isolate vibration. mm SS 30 RPM (230 SFM) OSG's Performance & Savings 4 IPM Don't require ultra-high performance? Try HY-PRO® Carb VGX - List VG441 (p. 840) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 2050 good best WWW.OSGTOOL.COM EXOCARB® AERO 799
