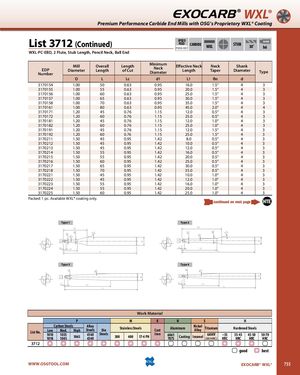

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3712 (Continued) SPEEDFEED CARBIDEP1010-1017WXL SHANKSTUB30˚h6 WXL-PC-EBD, 2 Flute, Stub Length, Pencil Neck, Ball End EDPNumber Mill Overall LengthDiameterLengthof Cut MinimumNeckDiameterEffective NeckLength NeckTaper ShankDiameter Type D L Lc d1 L1 θn d 3170154 1.00 50 0.63 0.95 16.0 1.5° 4 3 3170155 1.00 55 0.63 0.95 20.0 1.5° 4 3 3170156 1.00 60 0.63 0.95 25.0 1.5° 4 3 3170157 1.00 65 0.63 0.95 30.0 1.5° 4 3 3170158 1.00 70 0.63 0.95 35.0 1.5° 4 3 3170161 1.00 80 0.63 0.95 45.0 2.0° 4 4 3170171 1.20 45 0.76 1.15 12.0 0.5° 4 3 3170172 1.20 60 0.76 1.15 25.0 0.5° 4 3 3170181 1.20 45 0.76 1.15 12.0 1.0° 4 3 3170182 1.20 60 0.76 1.15 25.0 1.0° 4 3 3170191 1.20 45 0.76 1.15 12.0 1.5° 4 3 3170192 1.20 60 0.76 1.15 25.0 1.5° 4 3 3170211 1.50 45 0.95 1.42 8.0 0.5° 4 3 3170212 1.50 45 0.95 1.42 10.0 0.5° 4 3 3170213 1.50 45 0.95 1.42 12.0 0.5° 4 3 3170214 1.50 55 0.95 1.42 16.0 0.5° 4 3 3170215 1.50 55 0.95 1.42 20.0 0.5° 4 3 3170216 1.50 60 0.95 1.42 25.0 0.5° 4 3 3170217 1.50 65 0.95 1.42 30.0 0.5° 4 3 3170218 1.50 70 0.95 1.42 35.0 0.5° 4 3 3170221 1.50 45 0.95 1.42 10.0 1.0° 4 3 3170222 1.50 45 0.95 1.42 12.0 1.0° 4 3 3170223 1.50 55 0.95 1.42 16.0 1.0° 4 3 3170224 1.50 55 0.95 1.42 20.0 1.0° 4 3 3170225 1.50 60 0.95 1.42 25.0 1.0° 4 3 Packed: 1 pc. Available WXL® coating only. Type 1 Type 2 L2 L2 Lc L1 L Lc L1 L Type 3 Type 4 Lc L1 Lc L1 L L Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3712 good best WWW.OSGTOOL.COM EXOCARB® WXL® 755 DD d1 θnd1 d2 θn dd D D d1d1 θnθn d2 dd 15° 15°
