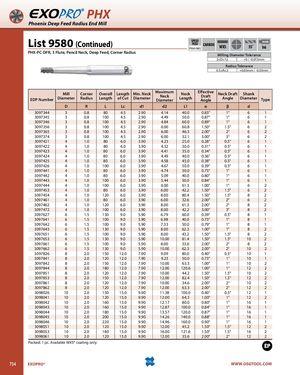

PHX Phoenix Deep Feed Radius End Mill List 9580 (Continued) SPEEDFEED CARBIDEP984-985WXS SHANK55˚h6 PHX-PC-DFR, 3 Flute, Pencil Neck, Deep Feed, Corner Radius Milling Diameter Tolerance 2≤D≤12 +0 / -0.015mm Radius Tolerance 0.5≤R≤2 +0.03mm / -0.03mm MillEDP NumberDiameterCornerRadiusOverallLengthLengthMin. Neckof CutDiameterMaximumNeckDiameterNeckLengthEffectiveDraftAngleNeck DraftShankAngleDiameterType D R L Lc d1 d2 L1 α β d 3097344 3 0.8 80 4.5 2.90 4.14 40.0 0.83° 1° 6 1 3097345 3 0.8 100 4.5 2.90 4.49 50.0 0.87° 1° 6 1 3097346 3 0.8 100 4.5 2.90 4.84 60.0 0.89° 1° 6 1 3097356 3 0.8 100 4.5 2.90 6.00 60.8 1.50° 1.5° 6 2 3097365 3 0.8 100 4.5 2.90 6.00 46.5 2.00° 2° 6 2 3097374 3 0.8 100 4.5 2.90 6.00 32.1 3.00° 3° 6 2 3097421 4 1.0 80 6.0 3.90 4.23 25.0 0.28° 0.5° 6 1 3097422 4 1.0 80 6.0 3.90 4.32 30.0 0.31° 0.5° 6 1 3097423 4 1.0 80 6.0 3.90 4.41 35.0 0.34° 0.5° 6 1 3097424 4 1.0 80 6.0 3.90 4.49 40.0 0.36° 0.5° 6 1 3097425 4 1.0 80 6.0 3.90 4.58 45.0 0.38° 0.5° 6 1 3097426 4 1.0 100 6.0 3.90 4.67 50.0 0.39° 0.5° 6 1 3097441 4 1.0 80 6.0 3.90 4.74 30.0 0.73° 1° 6 1 3097442 4 1.0 80 6.0 3.90 5.09 40.0 0.80° 1° 6 1 3097443 4 1.0 100 6.0 3.90 5.44 50.0 0.84° 1° 6 1 3097444 4 1.0 100 6.0 3.90 6.00 61.3 1.00° 1° 6 2 3097453 4 1.0 80 6.0 3.90 6.00 42.2 1.50° 1.5° 6 2 3097454 4 1.0 120 6.0 3.90 8.00 80.4 1.50° 1.5° 8 2 3097461 4 1.0 80 6.0 3.90 6.00 32.6 2.00° 2° 6 2 3097462 4 1.0 120 6.0 3.90 8.00 61.3 2.00° 2° 8 2 3097472 4 1.0 100 6.0 3.90 8.00 42.2 3.00° 3° 8 2 3097627 6 1.5 130 9.0 5.90 6.79 60.0 0.39° 0.5° 8 1 3097641 6 1.5 100 9.0 5.90 6.98 40.0 0.73° 1° 8 1 3097642 6 1.5 100 9.0 5.90 7.33 50.0 0.79° 1° 8 1 3097643 6 1.5 130 9.0 5.90 8.00 62.3 1.00° 1° 8 2 3097651 6 1.5 100 9.0 5.90 8.00 43.2 1.50° 1.5° 8 2 3097653 6 1.5 130 9.0 5.90 10.00 81.4 1.50° 1.5° 10 2 3097661 6 1.5 100 9.0 5.90 8.00 33.6 2.00° 2° 8 2 3097662 6 1.5 130 9.0 5.90 10.00 62.3 2.00° 2° 10 2 3097826 8 2.0 150 12.0 7.90 9.09 80.0 0.40° 0.5° 10 1 3097841 8 2.0 120 12.0 7.90 9.23 50.0 0.73° 1° 10 1 3097842 8 2.0 150 12.0 7.90 10.00 63.3 1.00° 1° 10 2 3097844 8 2.0 180 12.0 7.90 12.00 120.6 1.00° 1° 12 2 3097851 8 2.0 120 12.0 7.90 10.00 44.2 1.50° 1.5° 10 2 3097853 8 2.0 150 12.0 7.90 12.00 82.4 1.50° 1.5° 12 2 3097861 8 2.0 120 12.0 7.90 10.00 34.6 2.00° 2° 10 2 3097862 8 2.0 120 12.0 7.90 12.00 63.3 2.00° 2° 12 2 3098026 10 2.0 150 15.0 9.90 11.38 100.0 0.40° 0.5° 12 1 3098041 10 2.0 120 15.0 9.90 12.00 64.3 1.00° 1° 12 2 3098042 10 2.0 160 15.0 9.90 12.17 80.0 0.80° 1° 16 1 3098043 10 2.0 160 15.0 9.90 12.87 100.0 0.84° 1° 16 1 3098044 10 2.0 180 15.0 9.90 13.57 120.0 0.87° 1° 16 1 3098045 10 2.0 200 15.0 9.90 14.26 140.0 0.88° 1° 16 1 3098046 10 2.0 220 15.0 9.90 14.96 160.0 0.90° 1° 16 1 3098051 10 2.0 120 15.0 9.90 12.00 45.2 1.50° 1.5° 12 2 3098053 10 2.0 180 15.0 9.90 16.00 121.6 1.50° 1.5° 16 2 3098061 10 2.0 120 15.0 9.90 12.00 35.6 2.00° 2° 12 2 Packed: 1 pc. Available WXS® coating only. 734 EXOPRO® WWW.OSGTOOL.COM
