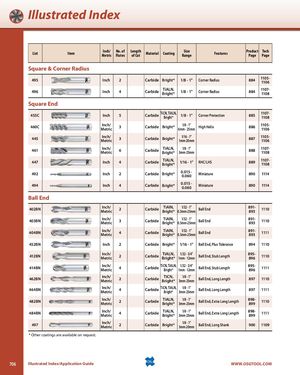

Illustrated Index List Item Inch/ No. ofMetricFlutesLengthof CutMaterialCoating SizeRange Features Product TechPagePage Square & Corner Radius 495 Inch 2 Carbide Bright* 1/8 - 1" Corner Radius 884 1105-1106 496 Inch 4 Carbide TiALN,Bright* 1/8 - 1" Corner Radius 884 1107-1108 Square End 455C Inch 5 Carbide TiCN, TiALN, Bright* 1/8 - 1" Corner Protection 885 1107-1108 460C Inch/Metric3 Carbide Bright* 1/8 - 1"6mm - 25mm High Helix 886 1105-1106 445 Inch/Metric3 Carbide Bright* 1/16 - 1"1mm-20mm 887 1105-1106 461 Inch/Metric6 Carbide TiALN,Bright* 1/8 - 1"3mm-25mm 888 1107-1108 447 Inch 4 Carbide TiALN,Bright* 1/16 - 1" RHC/LHS 889 1107-1108 492 Inch 2 Carbide Bright* 0.015 -0.060 Miniature 890 1114 494 Inch 4 Carbide Bright* 0.015 -0.060 Miniature 890 1114 Ball End 402BN Inch/Metric2 Carbide TiAlN,Bright* 1/32 - 1"0.5mm-25mm Ball End 891-8931110 403BN Inch/Metric3 Carbide TiAlN,Bright* 1/32 - 1"0.5mm-25mm Ball End 891-8931110 404BN Inch/Metric4 Carbide TiAlN,Bright* 1/32 - 1"0.5mm-25mm Ball End 891-8931111 452BN Inch 2 Carbide Bright* 1/16 - 1" Ball End, Plus Tolerance 894 1110 412BN Inch/Metric2 Carbide TiALN,Bright* 1/32 - 3/4"1mm - 12mm Ball End, Stub Length 895-896 1110 414BN Inch/Metric4 Carbide TiCN, TiALN, Bright* 1/32 - 3/4" 1mm - 12mm Ball End, Stub Length 895-896 1111 462BN Inch/Metric2 Carbide TiCN,Bright* 1/8 - 1"3mm-25mm Ball End, Long Length 897 1110 464BN Inch/Metric4 Carbide TiCN, TiALN,Bright* 1/8 - 1"3mm-25mm Ball End, Long Length 897 1111 482BN Inch/Metric2 Carbide TiALN,Bright* 1/8 - 1"3mm-25mm Ball End, Extra Long Length 898-899 1110 484BN Inch/Metric4 Carbide TiALN,Bright* 1/8 - 1"3mm-25mm Ball End, Extra Long Length 898-899 1111 497 Inch/Metric2 Carbide Bright* 1/8 - 1"3mm-20mm Ball End, Long Shank 900 1109 * Other coatings are available on request. 706 Illustrated Index/Application Guide WWW.OSGTOOL.COM
