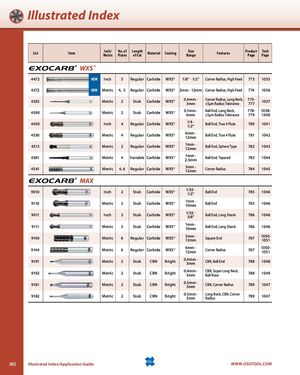

Общий каталог OSG 2018 - 2019 - страница 692

Illustrated Index List Item Inch/MetricNo. ofFlutesLengthof CutMaterialCoatingSizeRange Features Product TechPagePage EXOCARB ® WXS ® 4472 NEW Inch 5 Regular Carbide WXS® 1/8" - 1/2" Corner Radius, High Feed 773 1035 4572 NEW Metric 4, 5 Regular Carbide WXS® 2mm - 12mm Corner Radius, High Feed 774 1036 4592 Metric 2 Stub Carbide WXS® 0.4mm -3mm Corner Radius, Long Neck, 775-±5µm Radius Tolerance7771037 4590 Metric 2 Stub Carbide WXS® 0.1mm - Ball End, Long Neck,6mm±5µm Radius Tolerance778-1038-7791040 4430 Inch 4 Regular Carbide WXS® 1/4 -1/2" Ball End, True 4 Flute 780 1041 4530 Metric 4 Regular Carbide WXS® 6mm -12mm Ball End, True 4 Flute 781 1042 4513 Metric 2 Regular Carbide WXS® 1mm -12mm Ball End, Sphere Type 782 1043 4581 Metric 4 Variable Carbide WXS® 1mm -2.5mm Ball End, Tapered 783 1044 4541 Metric 4, 6 Regular Carbide WXS® 3mm -12mm Corner Radius 784 1045 EXOCARB ® MAX 9010 Inch 2 Stub Carbide WXS® 1/32 -1/2" Ball End 785 1046 9110 Metric 2 Stub Carbide WXS® 1mm -10mm Ball End 785 1046 9011 Inch 2 Stub Carbide WXS® 1/32 -3/8" Ball End, Long Shank 786 1046 9111 Metric 2 Stub Carbide WXS® 1mm -10mm Ball End, Long Shank 786 1046 9140 Metric 6 Regular Carbide WXS® 3mm -12mm Square End 787 1050-1051 9144 Metric 6 Regular Carbide WXS® 6mm -12mm Corner Radius 787 1050-1051 9191 Metric 2 Stub CBN Bright 0.4mm -3mm CBN, Ball End 788 1048 9192 Metric 2 Stub CBN Bright 0.4mm -3mm CBN, Super Long Neck,Ball Nose788 1049 9181 Metric 2 Stub CBN Bright 0.5mm -3mm CBN, Corner Radius 789 1047 9182 Metric 2 Stub CBN Bright 0.5mm -3mm Long Neck, CBN, CornerRadius789 1047 692 Illustrated Index/Application Guide WWW.OSGTOOL.COM
