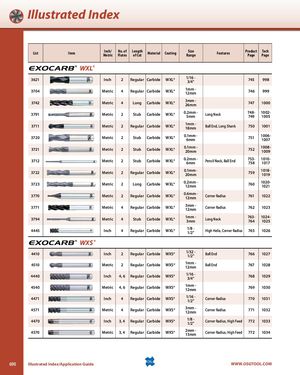

Общий каталог OSG 2018 - 2019 - страница 690

Illustrated Index List Item Inch/MetricNo. ofFlutesLengthof CutMaterialCoatingSizeRange Features Product TechPagePage EXOCARB ® WXL® 3621 Inch 2 Regular Carbide WXL® 1/16 -3/4" 745 998 3704 Metric 4 Regular Carbide WXL® 1mm -12mm 746 999 3742 Metric 4 Long Carbide WXL® 3mm -26mm 747 1000 3791 Metric 2 Stub Carbide WXL® 0.2mm -5mm Long Neck 748- 1002-7491005 3711 Metric 2 Regular Carbide WXL® 1mm -18mm Ball End, Long Shank 750 1001 3720 Metric 2 Stub Carbide WXL® 0.1mm -6mm 751 1006-1007 3721 Metric 2 Stub Carbide WXL® 0.1mm -20mm 752 1008-1009 3712 Metric 2 Stub Carbide WXL® 0.2mm -6mm Pencil Neck, Ball End 753- 1010-7581017 3722 Metric 2 Regular Carbide WXL® 0.1mm -20mm 759 1018-1019 3723 Metric 2 Long Carbide WXL® 0.2mm -12mm 760 1020-1021 3770 Metric 2 Regular Carbide WXL® 0.6mm -12mm Corner Radius 761 1022 3771 Metric 4 Regular Carbide WXL® 3mm -12mm Corner Radius 762 1023 3794 Metric 4 Stub Carbide WXL® 1mm -3mm Long Neck 763- 1024-7641025 4445 Inch 4 Regular Carbide WXL® 1/8 -1/2" High Helix, Corner Radius 765 1026 EXOCARB ® WXS ® 4410 Inch 2 Regular Carbide WXS® 1/32 -1/2" Ball End 766 1027 4510 Metric 2 Regular Carbide WXS® 1mm -12mm Ball End 767 1028 4440 Inch 4, 6 Regular Carbide WXS® 1/16 -3/4" 768 1029 4540 Metric 4, 6 Regular Carbide WXS® 1mm -12mm 769 1030 4471 Inch 4 Regular Carbide WXS® 1/16 -1/2" Corner Radius 770 1031 4571 Metric 4 Regular Carbide WXS® 3mm -12mm Corner Radius 771 1032 4470 Inch 3, 4 Regular Carbide WXS® 1/8 -1/2" Corner Radius, High Feed 772 1033 4570 Metric 3, 4 Regular Carbide WXS® 2mm -13mm Corner Radius, High Feed 772 1034 690 Illustrated Index/Application Guide WWW.OSGTOOL.COM
