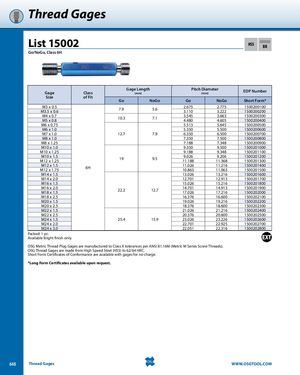

Thread Gages List 15002 HSS BR Go/NoGo, Class 6H Gage LengthGageClass(mm) Pitch Diameter(mm) EDP Number Size of Fit Go NoGo Go NoGo Short Form* M3 x 0.5M3.5 x 0.6 7.9 5.6 2.675 2.775 15002001003.1103.2221500200200 M4 x 0.7M5 x 0.8 10.3 7.1 3.545 3.663 15002003004.4804.6051500200400 M6 x 0.75 5.513 5.645 1500200500 M6 x 1.0 5.350 5.500 1500200600 M7 x 1.0 12.7 7.9 6.350 6.500 1500200700 M8 x 1.0 7.350 7.500 1500200800 M8 x 1.25 7.188 7.348 1500200900 M10 x 1.0 9.350 9.500 1500201000 M10 x 1.25 9.188 9.348 1500201100 M10 x 1.5M12 x 1.25 19 9.5 9.026 9.206 150020120011.18811.3681500201300 M12 x 1.5M12 x 1.75 6H 11.026 11.216 150020140010.86311.0631500201500 M14 x 1.5 13.026 13.216 1500201600 M14 x 2.0 12.701 12.913 1500201700 M16 x 1.5 15.026 15.216 1500201800 M16 x 2.0M18 x 1.5 22.2 12.7 14.701 14.913 150020190017.02617.2161500202000 M18 x 2.5 16.376 16.600 1500202100 M20 x 1.5 19.026 19.216 1500202200 M20 x 2.5 18.376 18.600 1500202300 M22 x 1.5 21.026 21.216 1500202400 M22 x 2.5 20.376 20.600 1500202500 M24 x 1.5 25.4 15.9 23.026 23.226 1500202600 M24 x 2.0 22.701 22.925 1500202700 M24 x 3.0 22.051 22.316 1500202800 Packed: 1 pc. Available Bright finish only. OSG Metric Thread Plug Gages are manufactured to Class X tolerances per ANSI B1.16M (Metric M Series Screw Threads). OSG Thread Gages are made from High Speed Steel (HSS) to 62/64 HRC. Short Form Certificates of Conformance are available with gages for no charge. *Long Form Certificates available upon request. 648 Thread Gages WWW.OSGTOOL.COM
