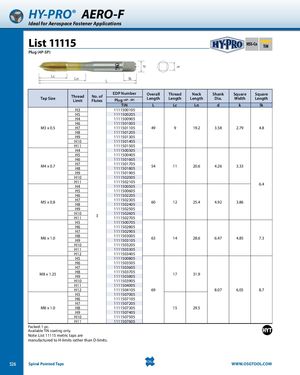

d k HY-PRO® AERO-F Ideal for Aerospace Fastener Applications List 11115 HSS-Co TiN Plug (4P-5P) Lc Ln L lk Tap Size Thread No. ofLimitFlutesEDP NumberPlug (4P - 5P)OverallThread Neck Shank Square SquareLengthLengthLengthDia.WidthLength TiN L Lc Ln d k lk H3 1111500105 H5 1111500205 H4 1111500905 H6 1111501005 M3 x 0.5 H7 1111501105 49 9 19.2 3.58 2.79 4.8 H8 1111501205 H9 1111501305 H10 1111501405 H11 1111501505 H4 1111500305 H5 1111500405 H6 1111501605 M4 x 0.7 H7H8 11115017051111501805 54 11 20.6 4.26 3.33 H9 1111501905 H10 1111502005 H11 1111502105H41111500505 6.4 H5 1111500605 H6 1111502205 M5 x 0.8 H7H8 11115023051111502405 60 12 25.4 4.92 3.86 H9 1111502505 H10H11 3 11115026051111502705 H5 1111500705 H6 1111502805 H7 1111502905 M6 x 1.0 H8H9 11115030051111503105 63 14 28.6 6.47 4.85 7.3 H10 1111503205 H11 1111503305 H12 1111503405 H5 1111500805 H6 1111503505 H7 1111503605 M8 x 1.25 H8H9 11115037051111503805 17 31.9 H10 1111503905 H11 1111504005 H12 1111504105 69 8.07 6.05 8.7 H5 1111507005 H6 1111507105 H7 1111507205 M8 x 1.0 H8 1111507305 15 29.5 H9 1111507405 H10 1111507505 H11 1111507605 Packed: 1 pc. Available TiN coating only. Note: List 11115 metric taps are manufactured to H-limits rather than D-limits. 526 Spiral Pointed Taps WWW.OSGTOOL.COM
