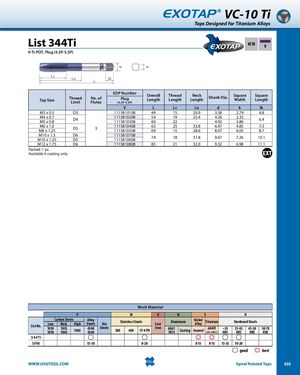

Общий каталог OSG 2018 - 2019 - страница 499

d k EXOTAP ® VC-10 Ti Taps Designed for Titanium Alloys List 344Ti VC10 V V-Ti-POT, Plug (4.5P-5.5P) Lc Ln L lk Tap Size Thread No. ofLimitFlutesEDP NumberPlug OverallLength ThreadLength NeckLengthShank Dia. SquareWidth SquareLength(4.5P-5.5P) V L Lc Ln d k lk M3 x 0.5 D3 1115810108 49 15 20.9 3.58 2.79 4.8 M4 x 0.7M5 x 0.8 D4 1115810208 541115810308601922 25.4 4.26 3.33-4.923.86 6.4 M6 x 1.0M8 x 1.25 D5 3 1115810408 6311158105086925 33.8 6.47 4.85 7.31528.68.076.058.7 M10 x 1.5 D6M10 x 1.25D5 11158107081115810608 74 18 31.8 9.67 7.26 10.1 M12 x 1.75 D6 1115810808 85 21 32.0 9.32 6.98 11.1 Packed: 1 pc. Available V coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 344Ti SFM 15-30 8-20 8-15 8-15 15-35 10-20 good best WWW.OSGTOOL.COM Spiral Pointed Taps 499
