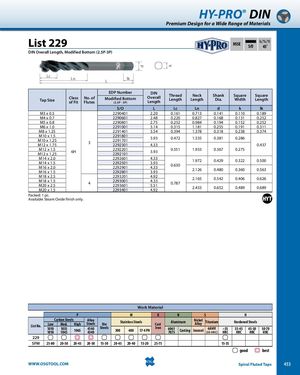

Общий каталог OSG 2018 - 2019 - страница 453

d k HY-PRO® DIN Premium Design for a Wide Range of Materials List 229 HSSE S/O 45˚ DIN Overall Length, Modified Bottom (2.5P-3P) Lc Ln L lk Tap Size EDP NumberClassNo. ofModified Bottomof FitFlutes(2.5P - 3P)DINOverallLengthThreadLengthNeckLengthShankDia.SquareSquareWidthLength S/O L Lc Ln d k lk M3 x 0.5 2290401 2.20 0.161 0.713 0.141 0.110 0.189 M4 x 0.7 2290601 2.48 0.220 0.827 0.168 0.131 0.252 M5 x 0.8 2290801 2.75 0.252 0.984 0.194 0.152 0.252 M6 x 1.0 2291001 3.14 0.315 1.181 0.255 0.191 0.311 M8 x 1.25 2291401 3.54 0.394 1.378 0.318 0.238 0.374 M10 x 1.5M10 x 1.25M12 x 1.75 3 229180122917012292301 3.93 0.472 1.535 0.381 0.2864.33 0.437 M12 x 1.5M12 x 1.25 6H 22922012292101 3.93 0.551 1.933 0.367 0.275 M14 x 2.0M14 x 1.5M16 x 2.0M16 x 1.5 22926012292501229290122928014.333.934.333.93 1.9720.6302.1260.429 0.322 0.5000.4800.3600.563 M18 x 2.5M18 x 1.5M20 x 2.5M20 x 1.54 22932012293001229360122934014.924.335.514.92 2.1650.7872.4330.542 0.406 0.6260.6520.4890.689 Packed: 1 pc. Available Steam Oxide finish only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 229 SFM 25-80 20-50 20-45 20-50 15-30 20-45 20-40 15-20 25-75 15-35 good best WWW.OSGTOOL.COM Spiral Fluted Taps 453
