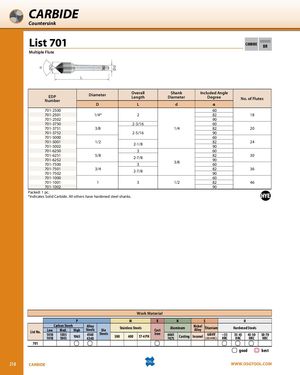

List 701
CARBIDE BR Multiple Flute
L
| Diameter | Overall | Shank | Included Angle | |||
| EDP | Length | Diameter | Degree | No. of Flutes |
Number
D L d α
701-2500 60
701-2501 1/4* 2 82 18
701-2502 90
| 701-3750 | 2-3/16 | 60 | |||
| 701-3751 | 3/8 | 1/4 | 82 | 20 | |
| 701-3752 | 2-5/16 | 90 |
701-5000 60
| 701-5001 | 1/2 | 82 | 24 | |
| 701-5002 | 2-1/8 | 90 | ||
| 701-6250 | 3 | 60 | ||
| 701-6251 | 5/8 | 2-7/8 | 82 | 30 |
| 701-6252 | 3/8 90 | |||
| 701-7500 | 3 | 60 | ||
| 701-7501 | 3/4 | 2-7/8 | 82 | 36 |
701-7502 90 701-1000 60
701-1001 1 3 1/2 82 46
701-1002 90 Packed: 1 pc. *Indicates Solid Carbide. All others have hardened steel shanks.
