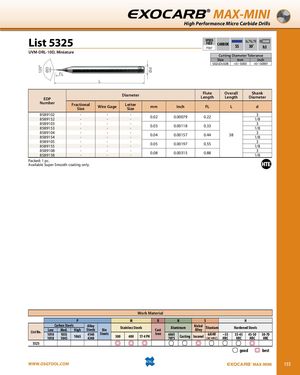

EXOCARB ® MAX-MINI High Performance Micro Carbide Drills List 5325 SPEED FEED P307 CARBIDE SS 30˚ SHANK h3 UVM-DRL-10D, Miniature Cutting Diameter Tolerance Size mm inch 0.02≤D≤0.08 +0 / -0.003 +0 / -0.0001 120 º ØD Ød FL L Flute Overall Shank Diameter EDP Length Length Diameter Number Fractional Letter Wire Gage mm Inch FL L d Size Size 8589102 - - - 3 0.02 0.00079 0.22 8589152 - - - 1/8 8589103 - - - 3 0.03 0.00118 0.33 8589153 - - - 1/8 8589104 - - - 3 0.04 0.00157 0.44 38 8589154 - - - 1/8 8589105 - - - 3 0.05 0.00197 0.55 8589155 - - - 1/8 8589108 - - - 3 0.08 0.00315 0.88 8589158 - - - 1/8 Packed: 1 pc. Available Super Smooth coating only. Work Material P M K N S H Carbon Steels Alloy Nickel Titanium Steels Stainless Steels Aluminum Alloy Hardened Steels List No. Low Med. High Die Cast Steels Iron 1010 1018 1035 1045 1065 4140 4340 300 400 17-4 PH 6061 7075 Casting Inconel 6Al4V (30 HRC) ~35 HRC 35-45 HRC 45-50 HRC 50-70 HRC 5325 good best WWW.OSGTOOL.COM EXOCARB® MAX-MINI 155
