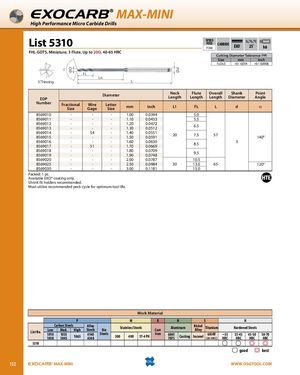

EXOCARB ® MAX-MINI High Performance Micro Carbide Drills List 5310 SPEED FEED P306 CARBIDE EXO® 25˚ FHL-GDTS, Miniature, 3 Flute, Up to 20D, 40-65 HRC Cutting Diameter Tolerance (h8) Size mm inch 1≤D≤3 +0 / -0.014 +0 / -0.0006 ØD Ød α FL Ln XThinning L Neck Flute Overall Shank Point Diameter EDP Length Length Length Diameter Angle Number Fractional Wire Letter mm Inch L1 FL L d α Size Gage Size 8569010 - - - 1.00 0.0394 5.0 8569011 - - - 1.10 0.0433 5.5 8569012 - - - 1.20 0.0472 6.5 8569013 - - - 1.30 0.0512 8569014 - 54 - 1.40 0.0551 20 7.5 57 8569015 - - - 1.50 0.0591 140° 8569016 - - - 1.60 0.0630 3 8.5 8569017 - 51 - 1.70 0.0669 8569018 - - - 1.80 0.0709 9.5 8569019 - - - 1.90 0.0748 8569020 - - - 2.00 0.0787 10.5 8569025 - - - 2.50 0.0984 30 13.0 65 120° 8569030 - - - 3.00 0.1181 15.0 Packed: 1 pc. Available EXO® coating only. Shrink fit holders recommended. Must utilize recommended peck cycle for optimum tool life. Work Material P M K N S H Carbon Steels Alloy Nickel Titanium Steels Stainless Steels Aluminum Alloy Hardened Steels List No. Low Med. High Die Cast Steels Iron 1010 1018 1035 1045 1065 4140 4340 300 400 17-4 PH 6061 7075 Casting Inconel 6Al4V (30 HRC) ~35 HRC 35-45 HRC 45-50 HRC 50-70 HRC 5310 good best 152 EXOCARB® MAX-MINI WWW.OSGTOOL.COM
