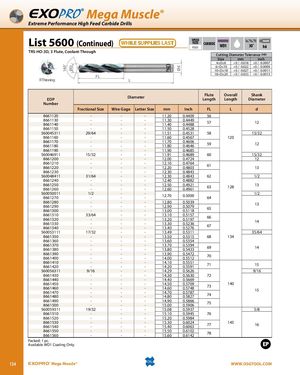

Продолжение TRS-HO-3D, 3-зубое, охлаждение через инструмент
Допуск на диаметр резания (h8)
| Размер (мм) | Допуск (мм) | Допуск (дюйм) |
|---|---|---|
| 4 ≤ D ≤ 6 | +0 / -0.018 | +0 / -0.0007 |
| 6 < D ≤ 10 | +0 / -0.022 | +0 / -0.0009 |
| 10 < D ≤ 18 | +0 / -0.027 | +0 / -0.0011 |
| 18 < D ≤ 20 | +0 / -0.033 | +0 / -0.0013 |
| Номер ЭДП | Дробный размер | Размер проволоки | Размер буквы | Диаметр (мм) | Диаметр (дюйм) | Длина зубьев (FL) | Общая длина (L) | Диаметр хвостовика (d) |
|---|---|---|---|---|---|---|---|---|
| 8661120 | - | - | - | 11.20 | 0.4409 | 56 | 120 | 12 |
| 8661130 | - | - | - | 11.30 | 0.4449 | 57 | 120 | 12 |
| 8661140 | - | - | - | 11.40 | 0.4488 | 57 | 120 | 12 |
| 8661150 | - | - | - | 11.50 | 0.4528 | 58 | 120 | 12 |
| 560045311 | 29/64 | - | - | 11.51 | 0.4531 | 58 | 120 | 15/32 |
| 8661160 | - | - | - | 11.60 | 0.4567 | 59 | 120 | 12 |
| 8661170 | - | - | - | 11.70 | 0.4606 | 59 | 120 | 12 |
| 8661180 | - | - | - | 11.80 | 0.4646 | 60 | 120 | 12 |
| 8661190 | - | - | - | 11.90 | 0.4685 | 60 | 120 | 12 |
| 560046911 | 15/32 | - | - | 11.91 | 0.4689 | 60 | 120 | 15/32 |
| 8661200 | - | - | - | 12.00 | 0.4724 | 61 | 120 | 12 |
| 8661210 | - | - | - | 12.10 | 0.4764 | 61 | 128 | 13 |
| 8661220 | - | - | - | 12.20 | 0.4803 | 62 | 128 | 13 |
| 8661230 | - | - | - | 12.30 | 0.4843 | 62 | 128 | 13 |
| 560048411 | 31/64 | - | - | 12.30 | 0.4843 | 62 | 128 | 1/2 |
| 8661240 | - | - | - | 12.40 | 0.4882 | 63 | 128 | 13 |
| 8661250 | - | - | - | 12.50 | 0.4921 | 63 | 128 | 13 |
| 8661260 | - | - | - | 12.60 | 0.4961 | 64 | 128 | 13 |
| 560050011 | 1/2 | - | - | 12.70 | 0.5000 | 64 | 128 | 1/2 |
| 8661270 | - | - | - | 12.80 | 0.5039 | 65 | 128 | 13 |
| 8661280 | - | - | - | 12.90 | 0.5079 | 65 | 128 | 13 |
| 8661300 | - | - | - | 13.00 | 0.5118 | 66 | 128 | 13 |
| 8661310 | 33/64 | - | - | 13.10 | 0.5157 | 66 | 134 | 14 |
| 8661320 | - | - | - | 13.20 | 0.5197 | 67 | 134 | 14 |
| 8661330 | - | - | - | 13.30 | 0.5236 | 67 | 134 | 14 |
| 8661340 | - | - | - | 13.40 | 0.5276 | 68 | 134 | 14 |
| 560053111 | 17/32 | - | - | 13.49 | 0.5311 | 68 | 134 | 35/64 |
| 8661350 | - | - | - | 13.50 | 0.5315 | 69 | 134 | 14 |
| 8661360 | - | - | - | 13.60 | 0.5354 | 69 | 134 | 14 |
| 8661370 | - | - | - | 13.70 | 0.5394 | 70 | 140 | 14 |
| 8661380 | - | - | - | 13.80 | 0.5433 | 70 | 140 | 14 |
| 8661390 | - | - | - | 13.90 | 0.5472 | 71 | 140 | 15 |
| 8661400 | - | - | - | 14.00 | 0.5512 | 71 | 140 | 15 |
| 8661410 | - | - | - | 14.10 | 0.5551 | 71 | 140 | 15 |
| 8661420 | - | - | - | 14.20 | 0.5591 | 72 | 140 | 15 |
| 560056311 | 9/16 | - | - | 14.29 | 0.5626 | 72 | 140 | 9/16 |
| 8661430 | - | - | - | 14.30 | 0.5630 | 73 | 140 | 15 |
| 8661440 | - | - | - | 14.40 | 0.5669 | 73 | 140 | 15 |
| 8661450 | - | - | - | 14.50 | 0.5709 | 74 | 140 | 15 |
| 8661460 | - | - | - | 14.60 | 0.5748 | 74 | 140 | 15 |
| 8661470 | - | - | - | 14.70 | 0.5787 | 75 | 140 | 15 |
| 8661480 | - | - | - | 14.80 | 0.5827 | 75 | 140 | 15 |
| 8661490 | - | - | - | 14.90 | 0.5866 | 75 | 140 | 15 |
| 8661500 | - | - | - | 15.00 | 0.5906 | 76 | 145 | 16 |
| 560059311 | 19/32 | - | - | 15.08 | 0.5937 | 76 | 145 | 5/8 |
| 8661510 | - | - | - | 15.10 | 0.5945 | 77 | 145 | 16 |
| 8661520 | - | - | - | 15.20 | 0.5984 | 77 | 145 | 16 |
| 8661530 | - | - | - | 15.30 | 0.6024 | 78 | 145 | 16 |
| 8661540 | - | - | - | 15.40 | 0.6063 | 78 | 145 | 16 |
| 8661550 | - | - | - | 15.50 | 0.6102 | 78 | 145 | 16 |
| 8661560 | - | - | - | 15.60 | 0.6142 | 79 | 145 | 16 |
Упаковано: 1 шт.
Доступно только покрытие WD1.
