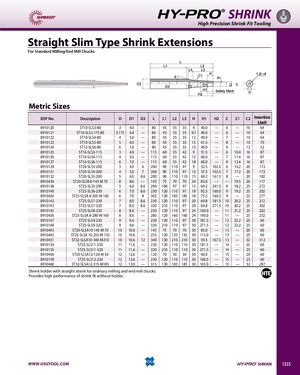

HY-PRO® SHRINK High Precision Shrink Fit Tooling Straight Slim Type Shrink Extensions For Standard Milling/End Mill Chucks Metric Sizes EDP No. Description D D1 D2 L L1 L2 L3 H H1 H2 C C1 C2 Insertion Limit 8910120 ST10-SLS3-80 3 4.0 — 80 45 35 35 9 40.0 — 6 — 10 64 8910121 ST10-SLS3.175-80 3.175 4.0 — 80 45 35 35 9.7 40.0 — 6 — 10 64 8910122 ST10-SLS4-80 4 5.0 — 80 45 35 35 12 40.0 — 7 — 10 64 8910123 ST10-SLS5-80 5 6.0 — 80 45 35 35 15 61.5 — 8 — 10 70 8910124 ST12-SLS6-80 6 7.0 — 80 45 35 35 15 40.0 — 9 — 12 52 8910125 ST16-SLS3-115 3 4.0 — 115 60 55 42 9 51.5 — 6 10.4 16 87 8910126 ST16-SLS4-115 4 5.0 — 115 60 55 42 12 60.0 — 7 11.4 16 87 8910127 ST16-SLS6-115 6 7.0 — 115 60 55 42 18 60.0 — 9 13.4 16 87 8910129 ST20-SLS3-200 3 4.0 6 200 90 110 97 9 52.5 102.5 6 16.2 20 172 8910131 ST20-SLS4-200 4 5.0 7 200 90 110 97 12 37.5 102.5 7 17.2 20 172 8910132 ST20-SLS5-200 5 6.0 8.6 200 90 110 110 15 69.2 161.5 8 — 20 182 8910434 ST20-SLSB 8-145-M 70 8 8.6 — 145 75 70 70 24 85.0 — — 19.5 20 117 8910138 ST25-SLS5-290 5 6.0 8.6 290 180 97 97 15 69.2 241.5 8 18.2 25 272 8910140 ST25-SLS6-230 6 7.0 8.6 230 120 110 97 18 92.5 160.0 9 19.2 25 202 8910426 ST25-SLSA 6-305-M 185 6 7.0 8 305 120 185 185 18 75.5 160.5 9 — 25 277 8910142 ST25-SLS7-230 7 8.0 8.6 230 120 110 97 20 69.8 181.5 10 20.2 25 212 8910143 ST25-SLS7-320 7 8.0 8.6 320 210 110 97 20 69.8 271.5 10 20.2 25 302 8910145 ST25-SLS8-230 8 8.6 — 230 120 110 97 24 160.0 — 11 21.2 25 202 8910436 ST25-SLSA 8-280-M 160 8 8.6 — 280 120 160 160 24 140.0 — 11 — 25 252 8910147 ST25-SLS9-230 9 9.6 — 230 120 110 97 30 181.5 — 12 22.2 25 60 8910148 ST25-SLS9-320 9 9.6 — 320 210 110 97 30 271.5 — 12 22.2 25 60 8910443 ST20-SLSA10-145-M 70 10 10.6 — 145 75 70 70 30 85.0 — 13 — 20 60 8910445 ST25-SLSA 10-255-M 135 10 10.6 — 255 120 135 135 30 115.0 — 13 — 25 60 8910451 ST32-SLSA10-340-M210 10 10.6 12 340 130 210 210 30 59.5 167.5 13 — 32 312 8910154 ST25-SLS11-230 11 11.6 — 230 120 110 110 30 181.5 — 14 — 25 60 8910155 ST25-SLS11-320 11 11.6 — 320 210 110 110 30 271.5 — 14 — 25 60 8910456 ST20-SLSA12-120-M 50 12 12.6 — 120 70 50 50 30 60.0 — 15 — 20 60 8910159 ST25-SLS12-230 12 12.6 — 230 120 110 110 30 160.0 — 15 — 25 60 8910460 ST32-SLSA12-315-M185 12 13.0 — 315 130 185 185 30 165.0 — 15 — 32 287 Shrink holder with straight shank for ordinary milling and end mill chucks. Provides high performance of shrink fit without holder. WWW.OSGTOOL.COM HY-PRO® SHRINK 1335
