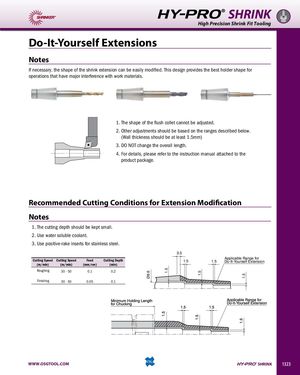

HY-PRO® SHRINK High Precision Shrink Fit Tooling Do-It-Yourself Extensions Notes If necessary, the shape of the shrink extension can be easily modified. This design provides the best holder shape for operations that have major interference with work materials. 1. The shape of the flush collet cannot be adjusted. 2. Other adjustments should be based on the ranges described below. (Wall thickness should be at least 1.5mm) 3. DO NOT change the overall length. 4. For details, please refer to the instruction manual attached to the product package. Recommended Cutting Conditions for Extension Modification Notes 1. The cutting depth should be kept small. 2. Use water soluble coolant. 3. Use positive-rake inserts for stainless steel. 3.5 Cutting Speed Cutting Speed Feed Cutting Depth 1.5 1.5 ADpop-Ilti-cYaobulersRelaf nEgxetefnosr ion (m/min) (m/min) (mm/rev) (min) Roughing 30 - 50 0.1 0.2 Finishing 30 - 50 0.05 0.1 WWW.OSGTOOL.COM HY-PRO® SHRINK 1323 Ø8.6 1.5 1.5 1.5
